Sikelan QDZH65G 12V 24V DC R134A Refrigeration Compressor Mobile Marine Off-Grid
Couldn't load pickup availability
READ CAREFULLY ALL LISTING BEFORE BUYING!!!!!

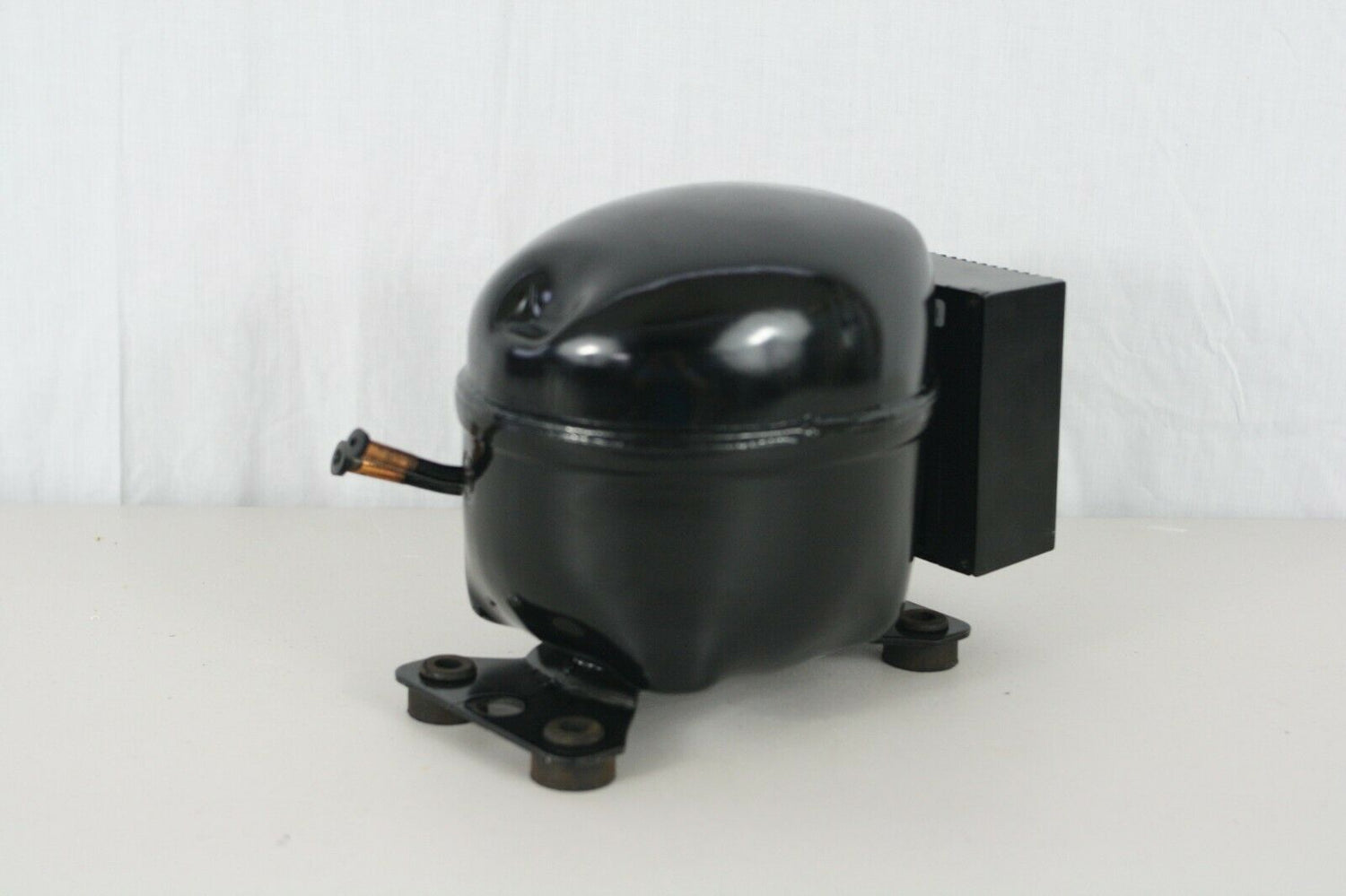

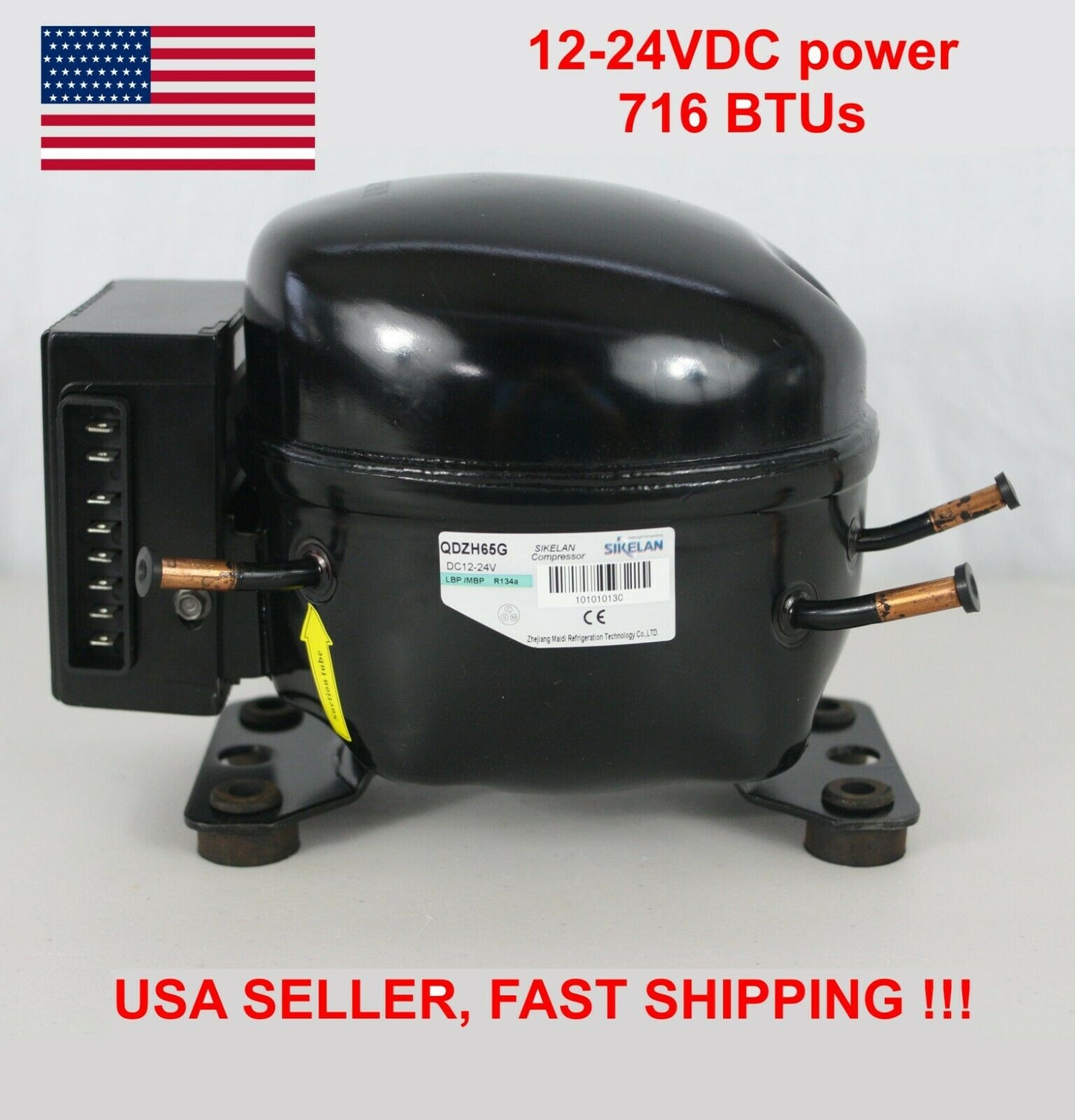

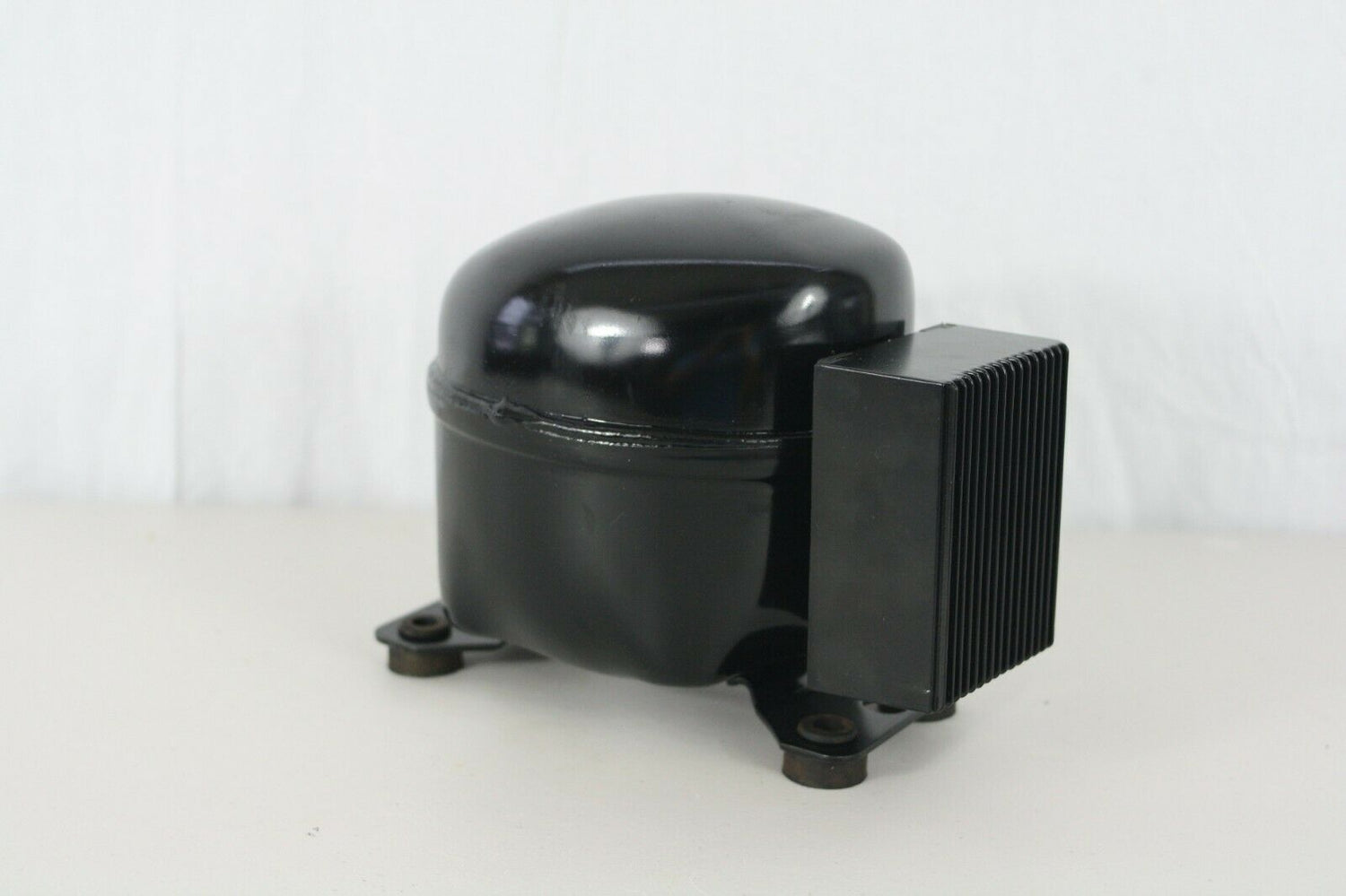

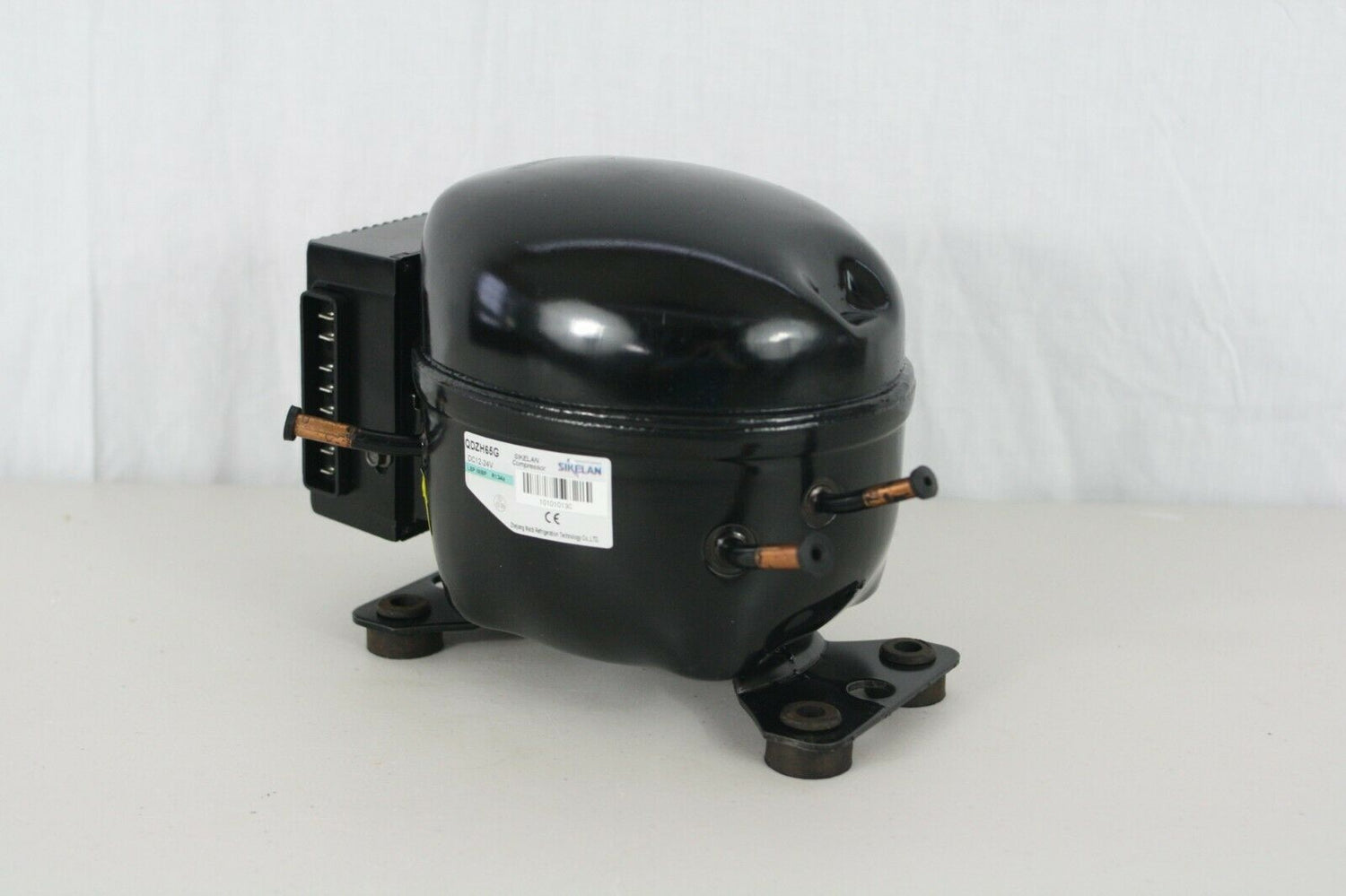

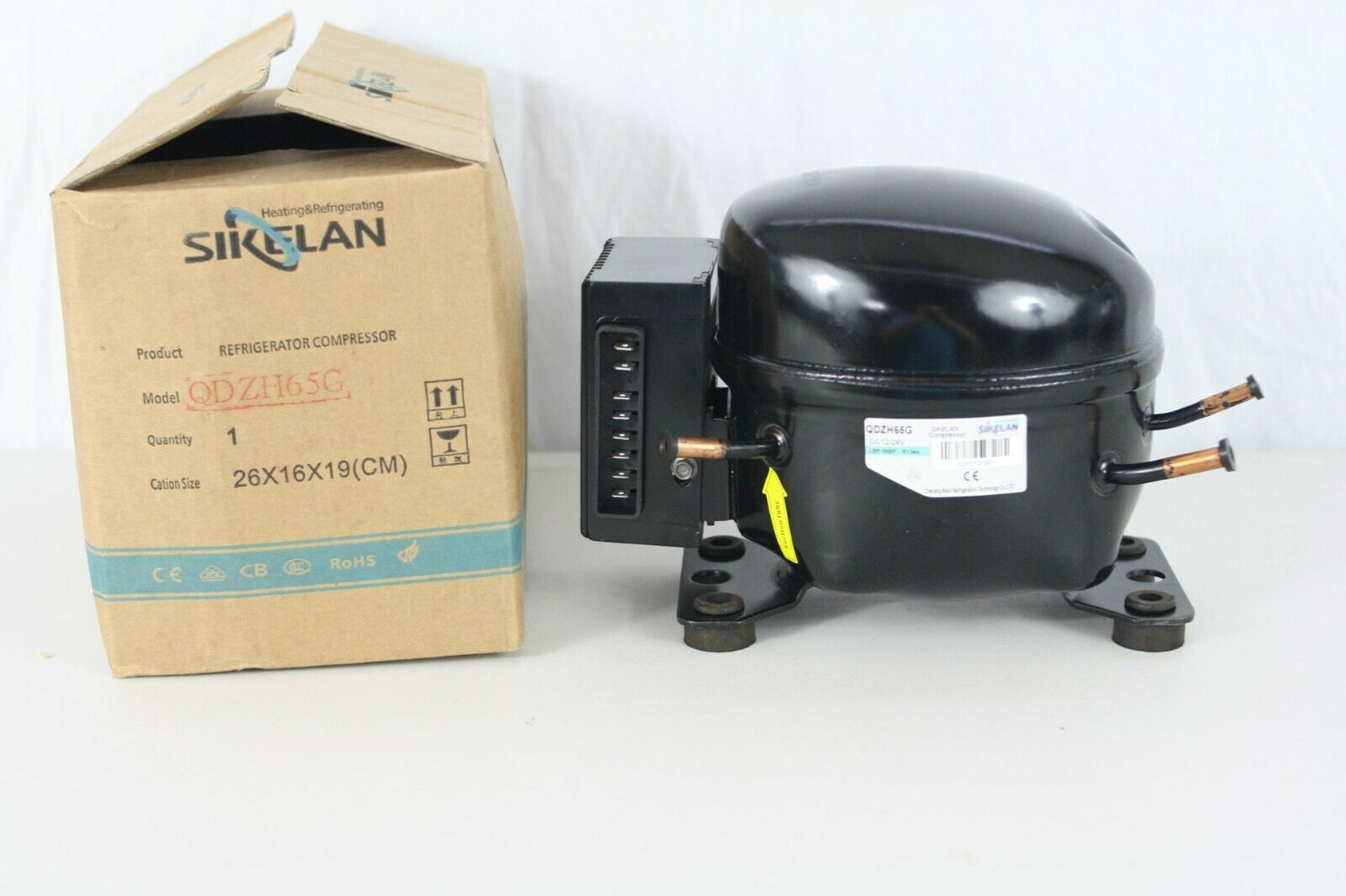

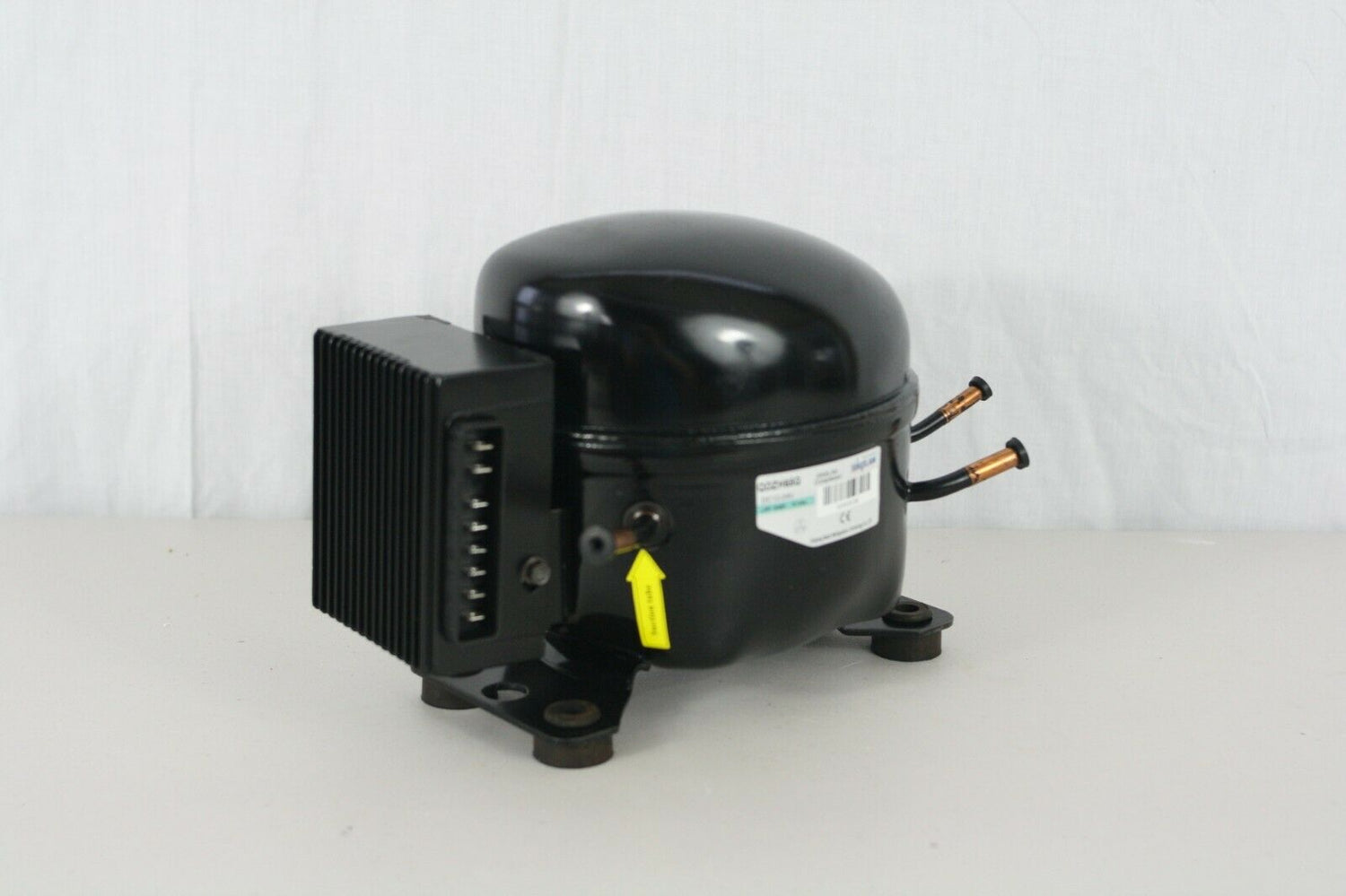

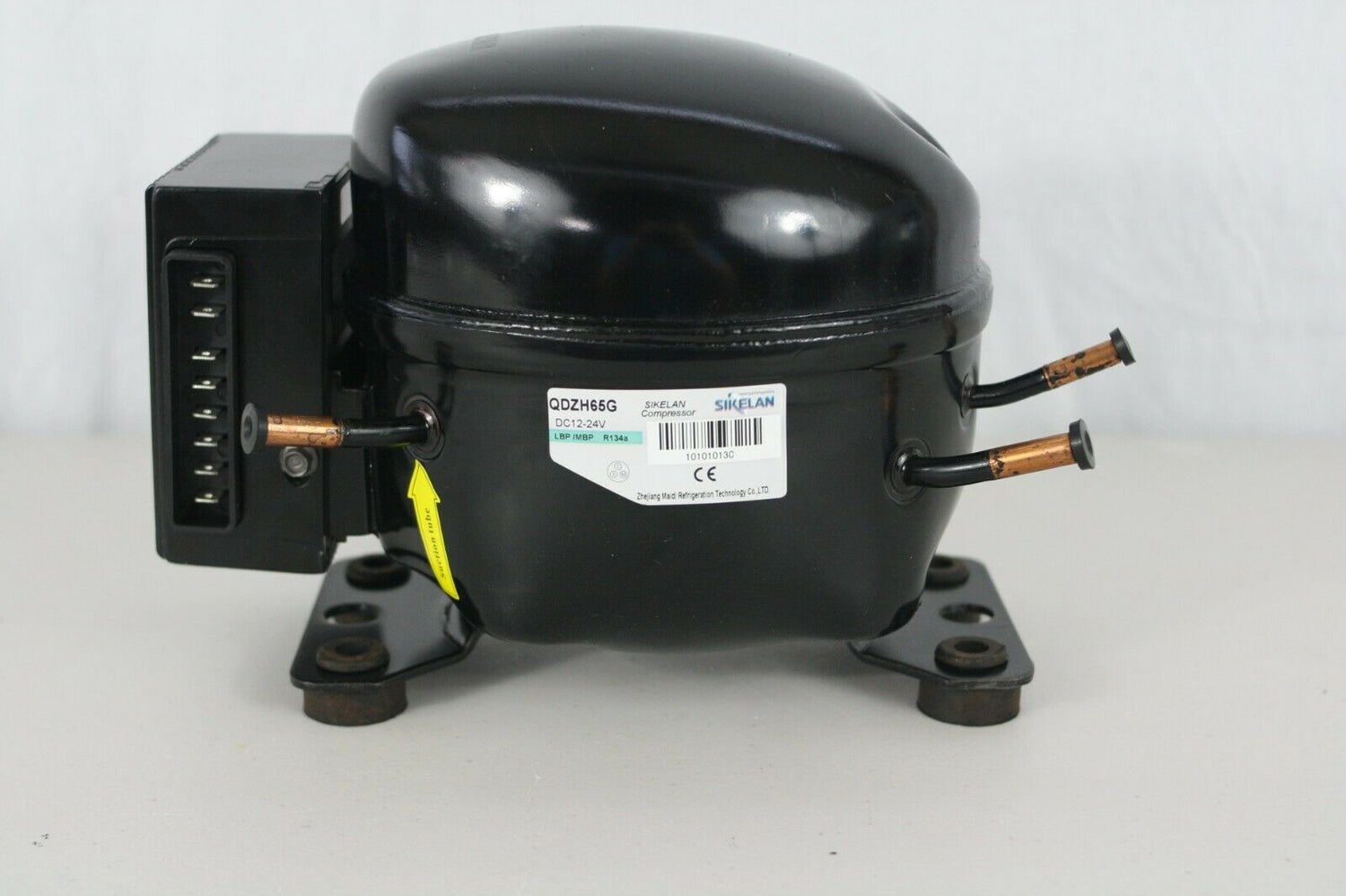

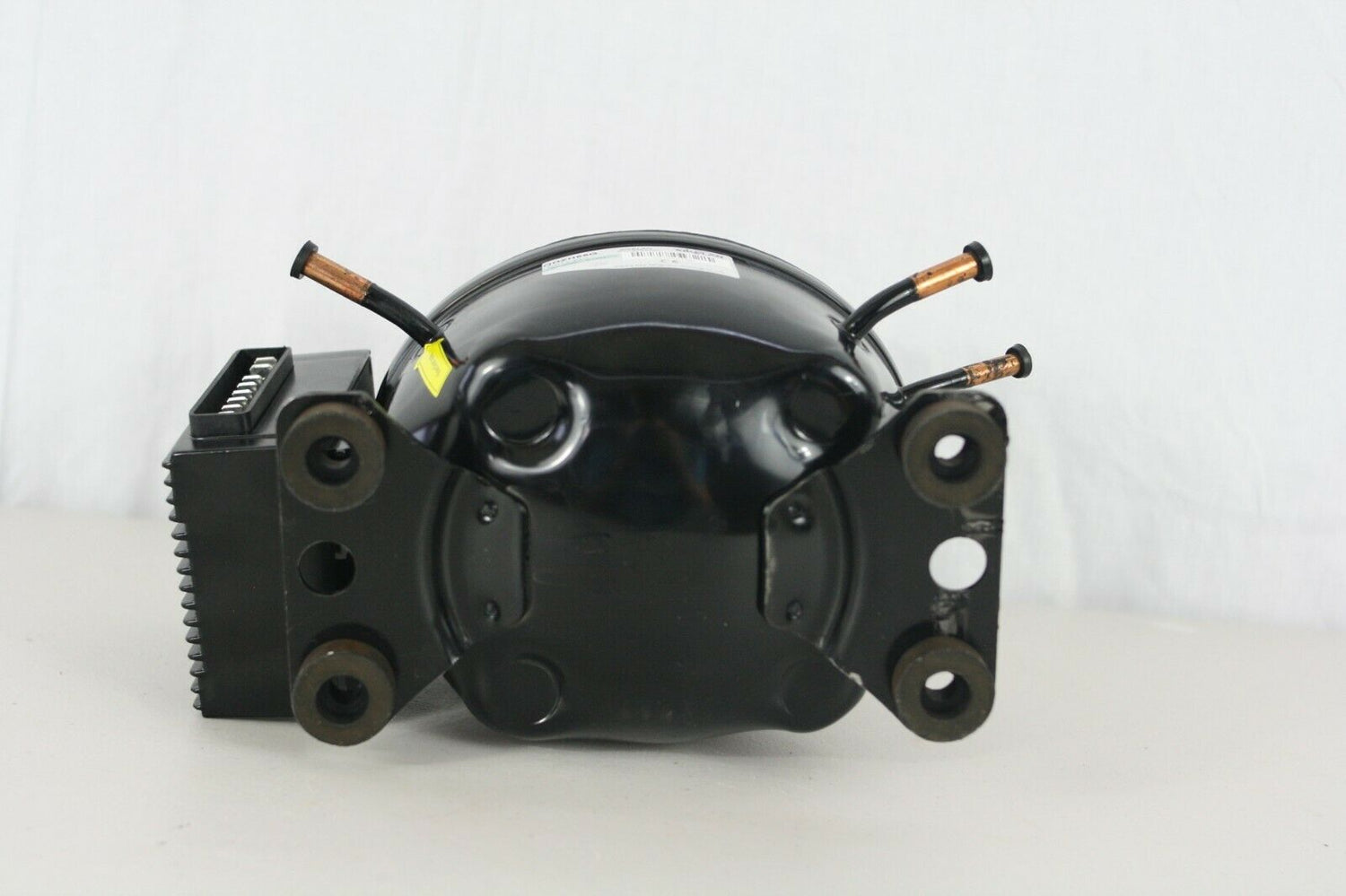

This listing is for a Brand New, Model QDZH65G, 12V / 24V DC (Air Cooling) Compressor, R134a refrigerant, max. 210w, Refrigerator Fridge Freezer Marine Boat or for Solar Off Grid.
Direct low cost replacement for Danfoss BD50 or BD80 DC compressors.

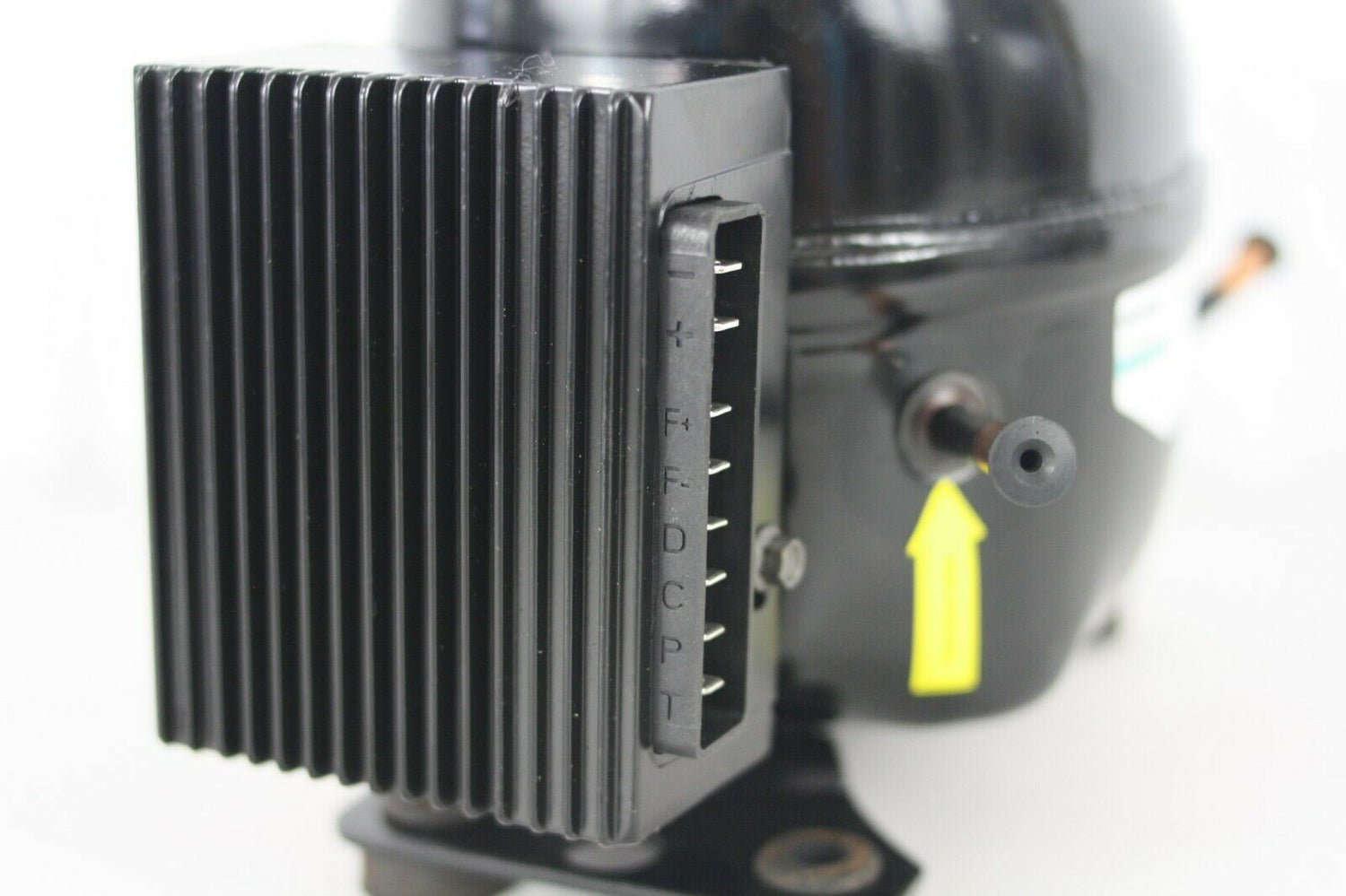

Electronic controller INCLUDED with purchase of compressor (like on picture)
Choose right compressor size and gas, Send me a message if you need help with that!
Electronic controller AVAILABLE as parts in my store
Suitable for water dispenser, small refrigerator, small freezer, wine cellar and other small cooling appliances used for car, ship and camping.

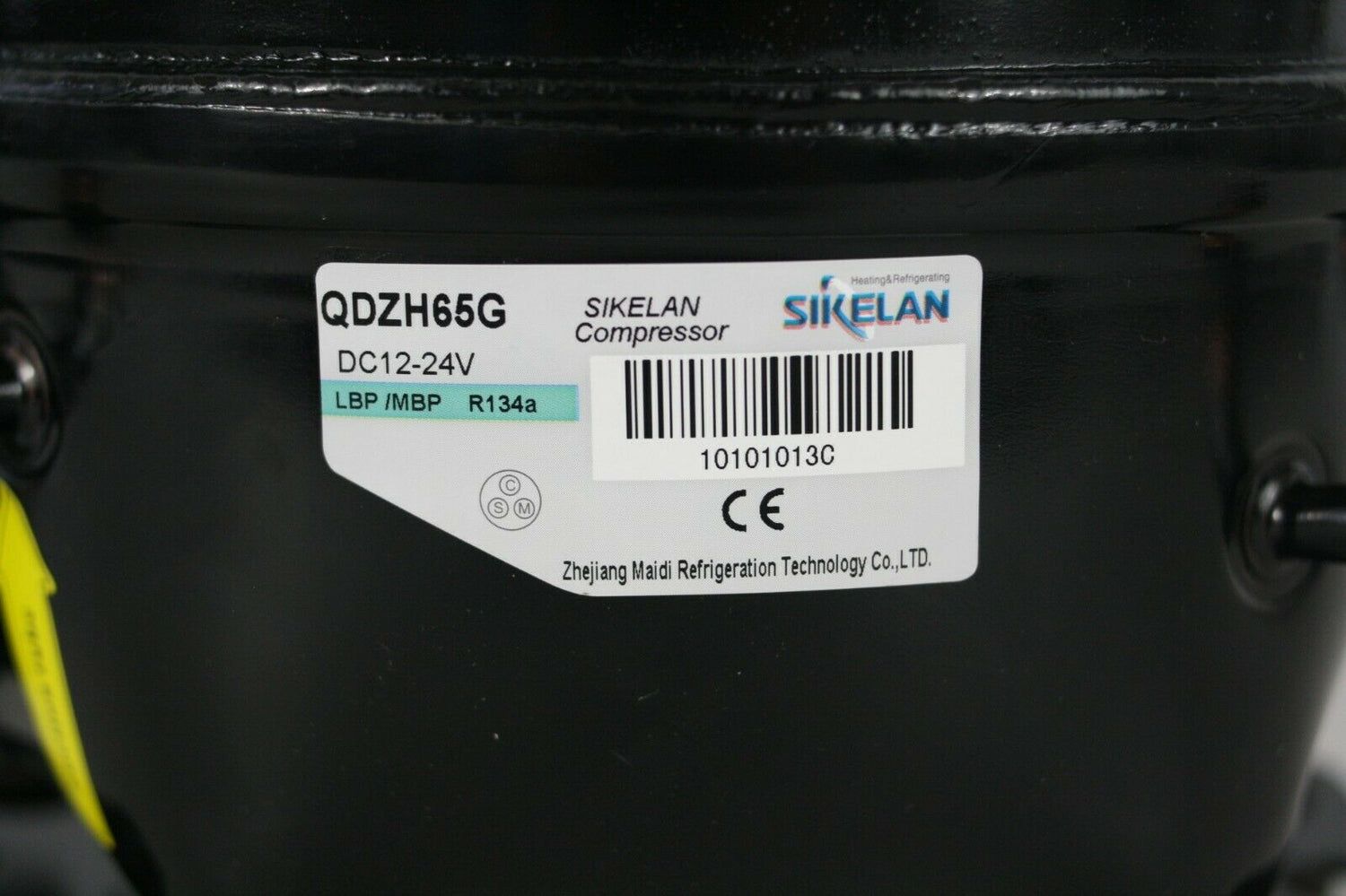

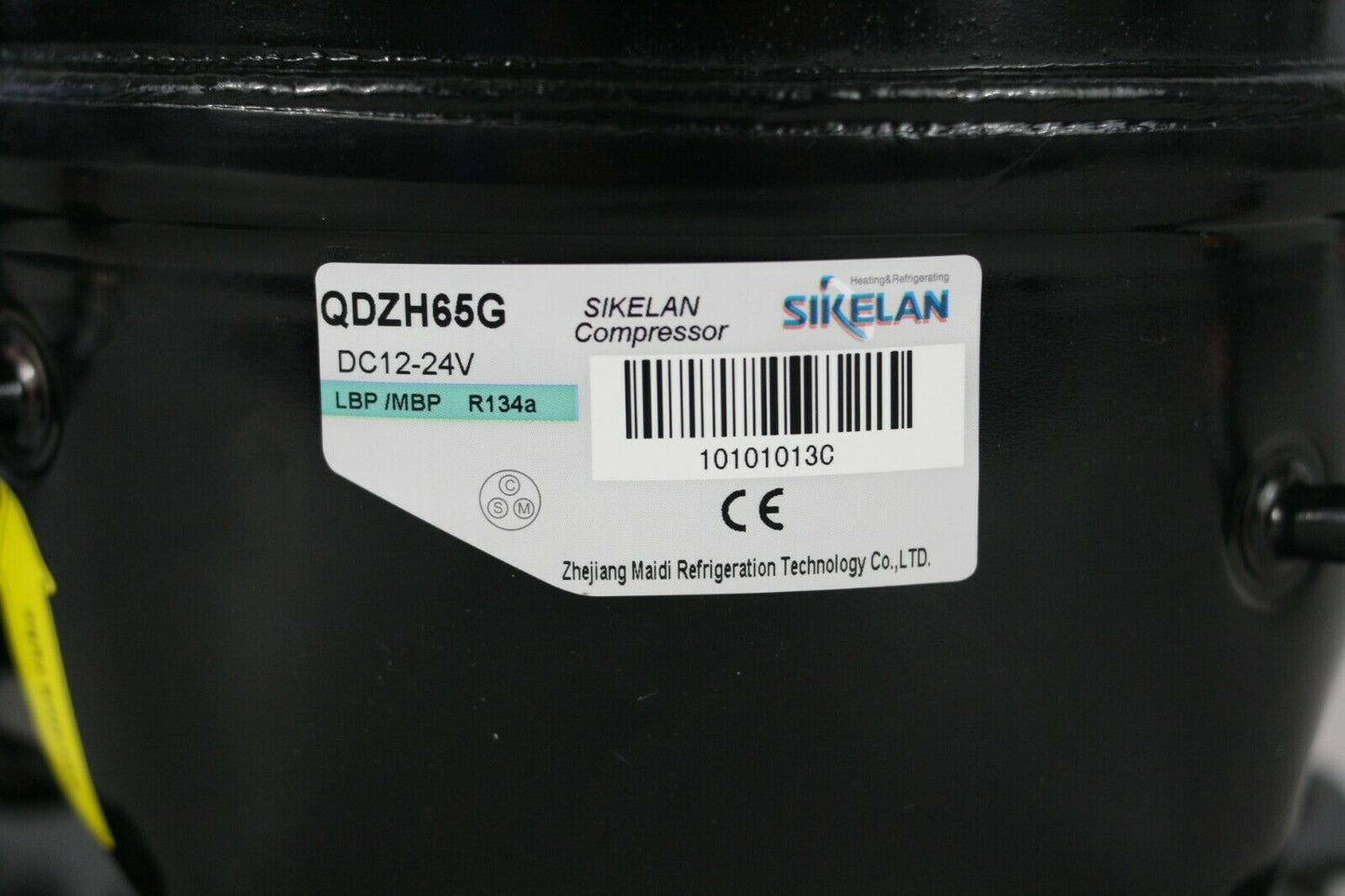

Model NO.: QDZH65G
Cooling System: Air Cooling
Cylinder Position: Horizontal
Compress Level: Single-Stage
Displacement: 6.5
Application: Low Back Pressure Type
Lubrication Style: Lubricated
Cylinder Arrangement: Single
Structure Type: Closed Type
Refrigerant Type: Freon
Power Source: DC Power
Product Description
1.Product Performance
1) QDZH65G, DC series, use R134A refrigerant;
2) Voltage application 12V and 24V;
3) Cooling type: ST or FAN;
4) Application: Low Back Pressure, Middle Back Pressure;
5) Max cooling capacity 210W;
6) Suitable for
freezer/refrigerator capacity: 200L to 400L. (This is an approximate, you need to choose from size of your existing compressor)
|
Model |
Displacement (cm3) |
Rotate Speed (rpm) |
Capacity (W) |
COP |
EER |
Oil charge |
Cooling Type |
Power Supply |
Certificate |
|||
|
-23.3ºC (ASHRAE) |
||||||||||||
|
W |
Kcal/h |
Btu/hb |
W/W |
Btu/W.h |
ml |
|||||||
|
QDZH65G |
6.5 |
2000 |
120 |
103.6 |
409.4 |
1.2 |
4.09 |
180 |
FC |
12/24V (DC) |
CE |
|
|
2500 |
150 |
129.6 |
511.8 |
1.2 |
4.09 |
|||||||
|
3000 |
180 |
155.5 |
614.2 |
1.2 |
4.09 |
|||||||
|
3500 |
210 |
181.4 |
716.5 |
1.2 |
4.09 |
|||||||
