12V DC Mini Refrigeration Compressor Fridge Freezer Marine Solar QX19-12 R134a
Couldn't load pickup availability
width="100%"READ CAREFULLY ALL LISTING BEFORE BUYING!!!!!

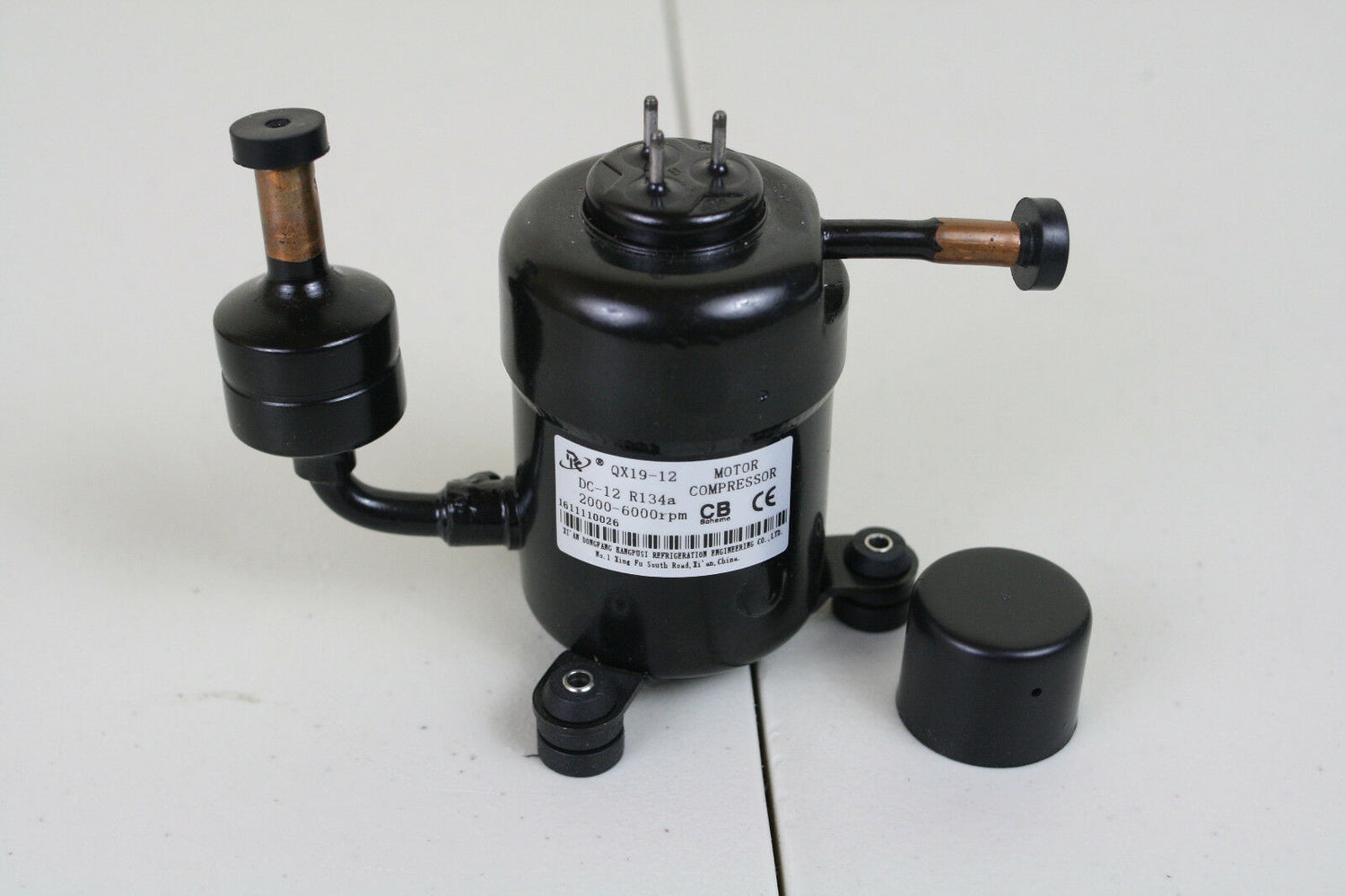

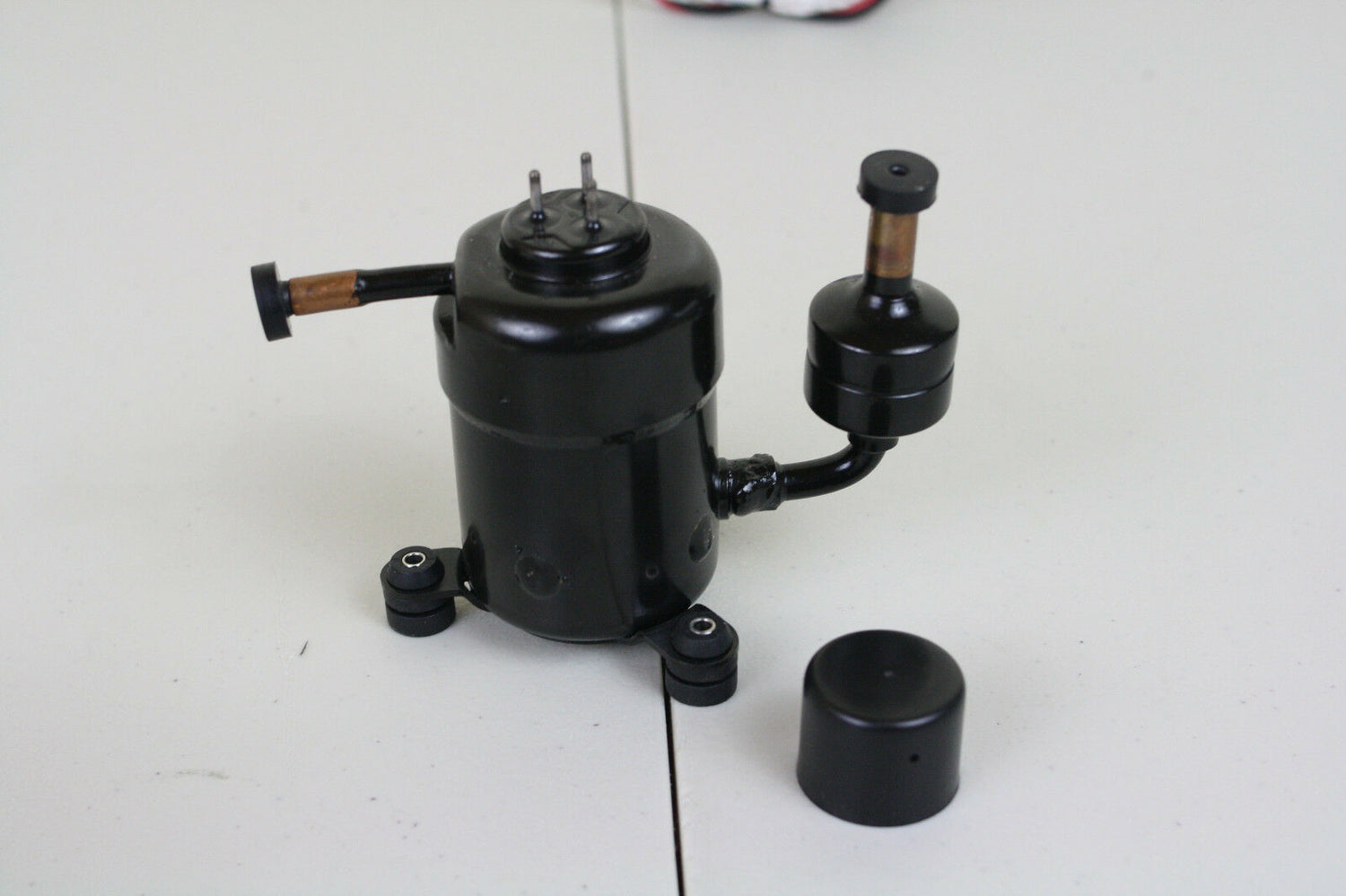

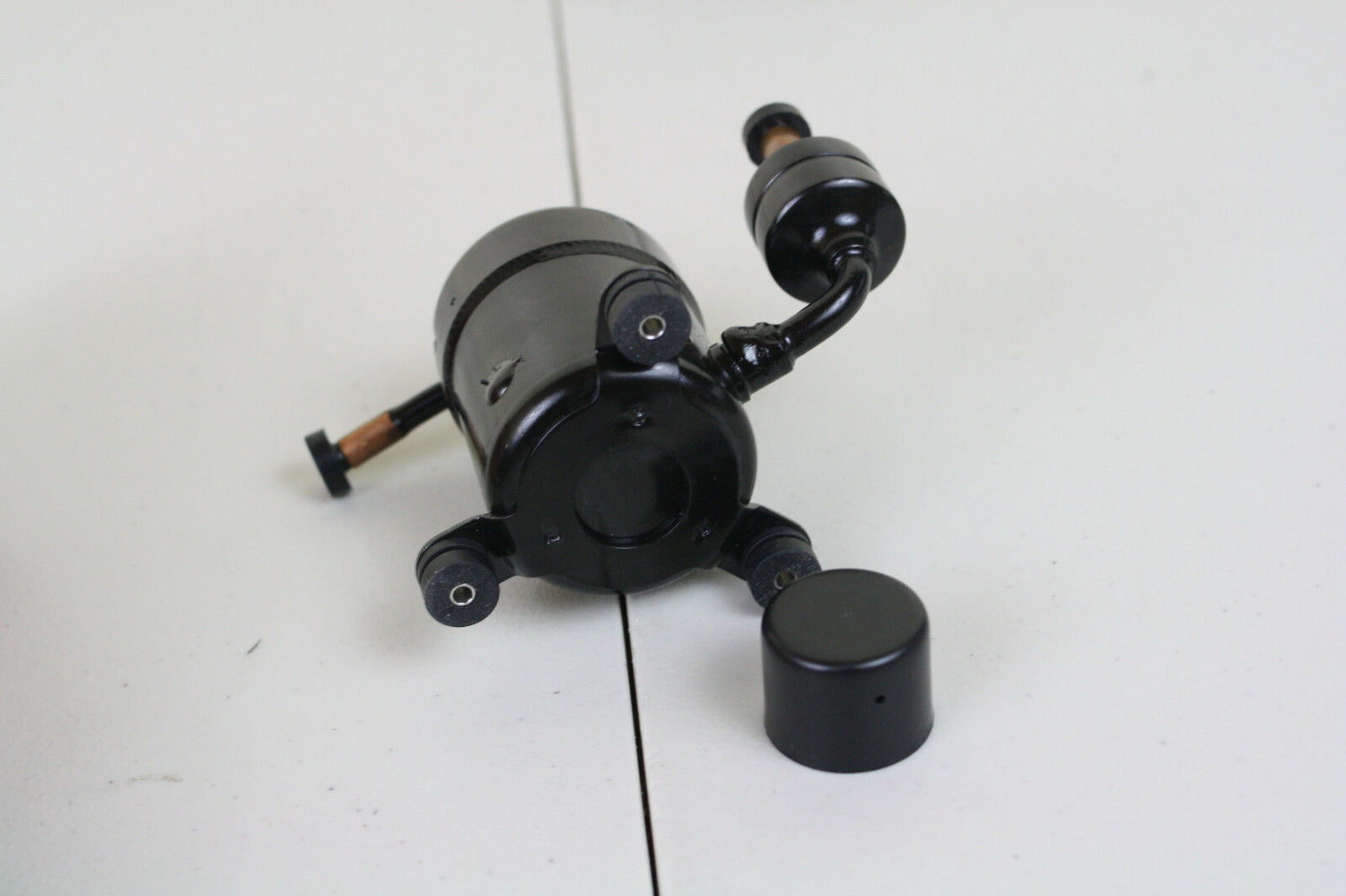

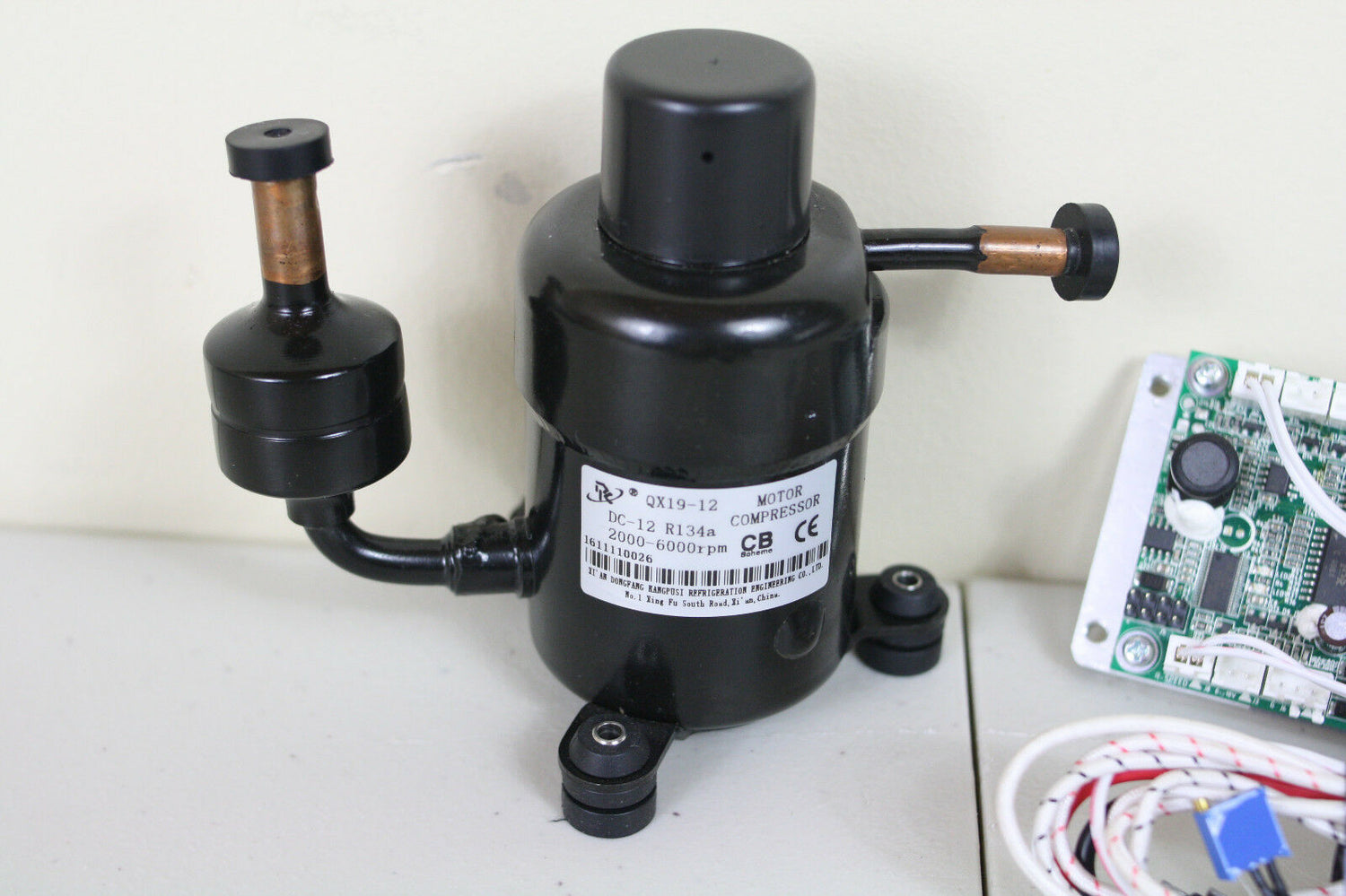

This listing is for a Brand New, Model QX19-12V , 12V DC (Air Cooling) Compressor, R134a refrigerant, 130-400w cooling capacity , Air conditionning , Chiller Marine Boat or for Solar Off Grid.

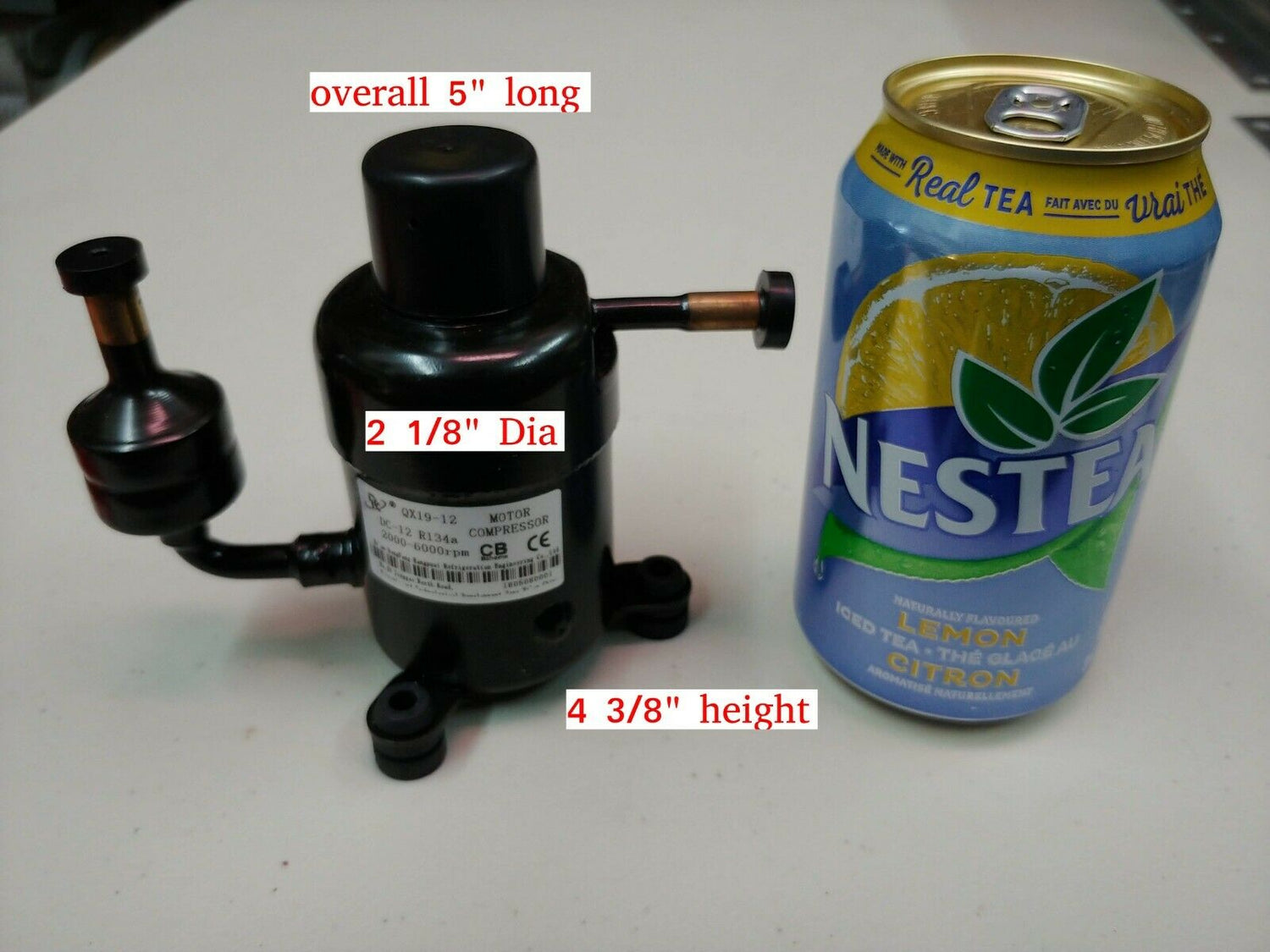

Dimensions:
4 3/4" Total height
body is 2 1/8" diameter
5" Lenght with pipes

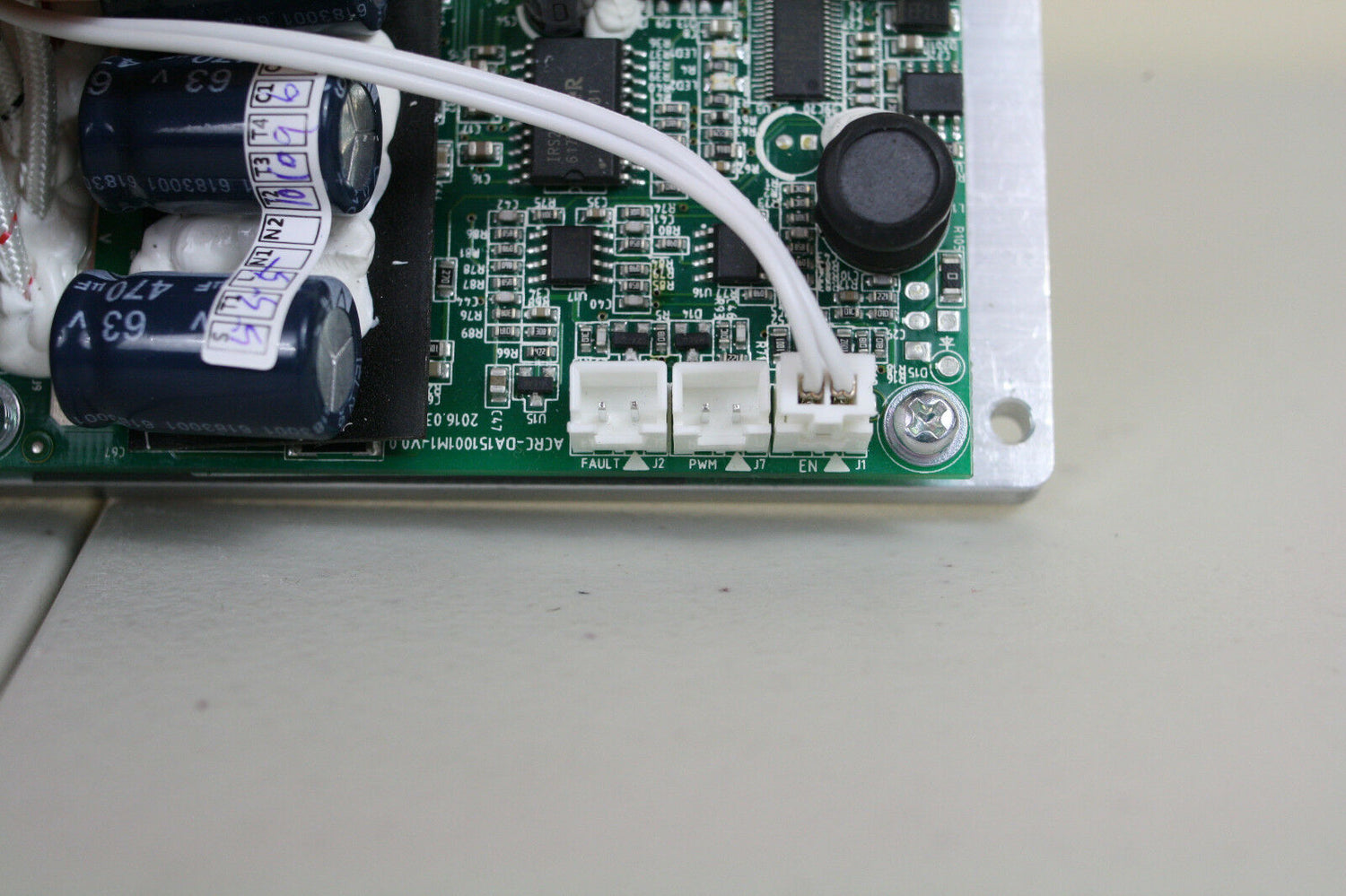

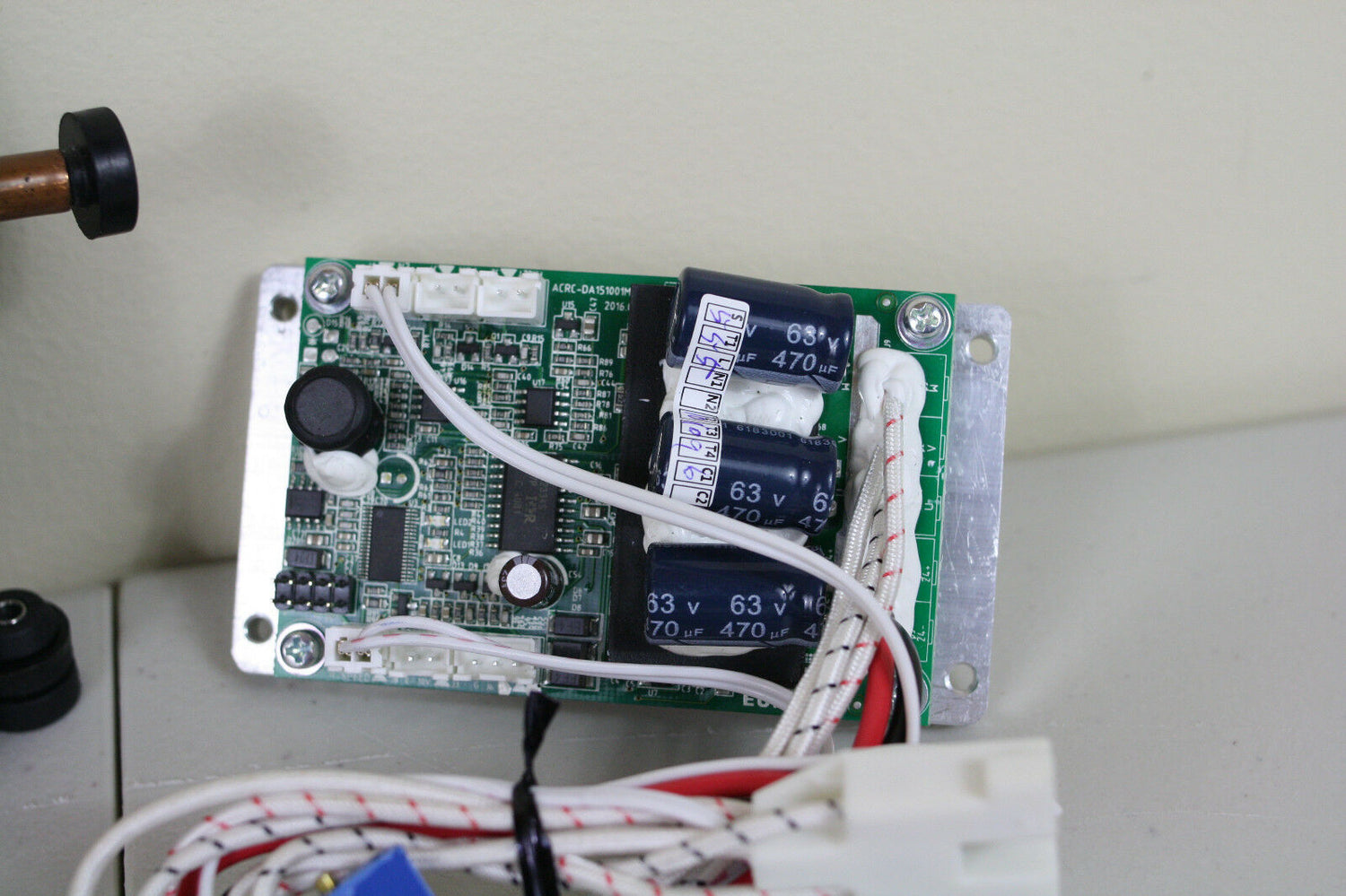

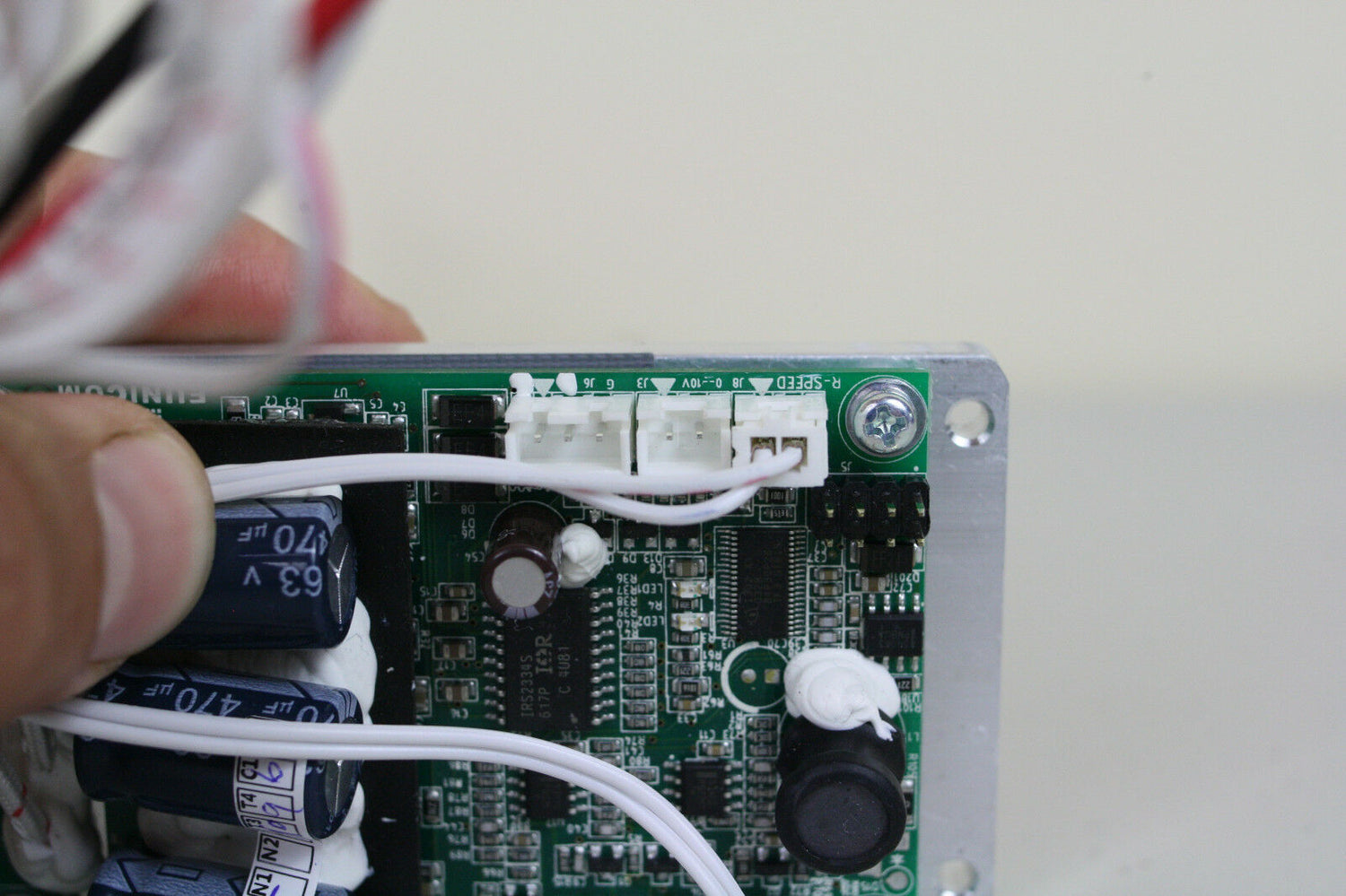

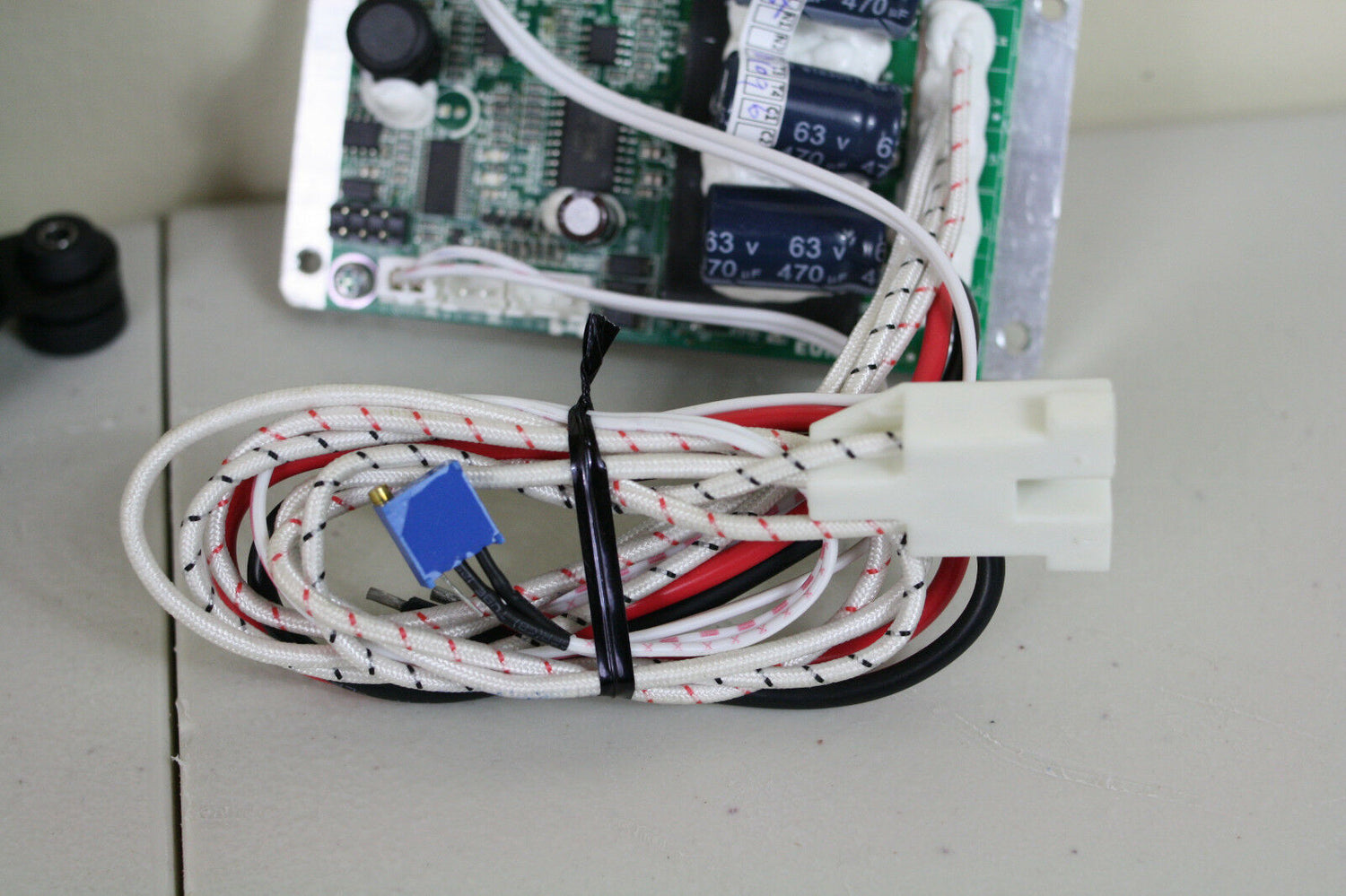

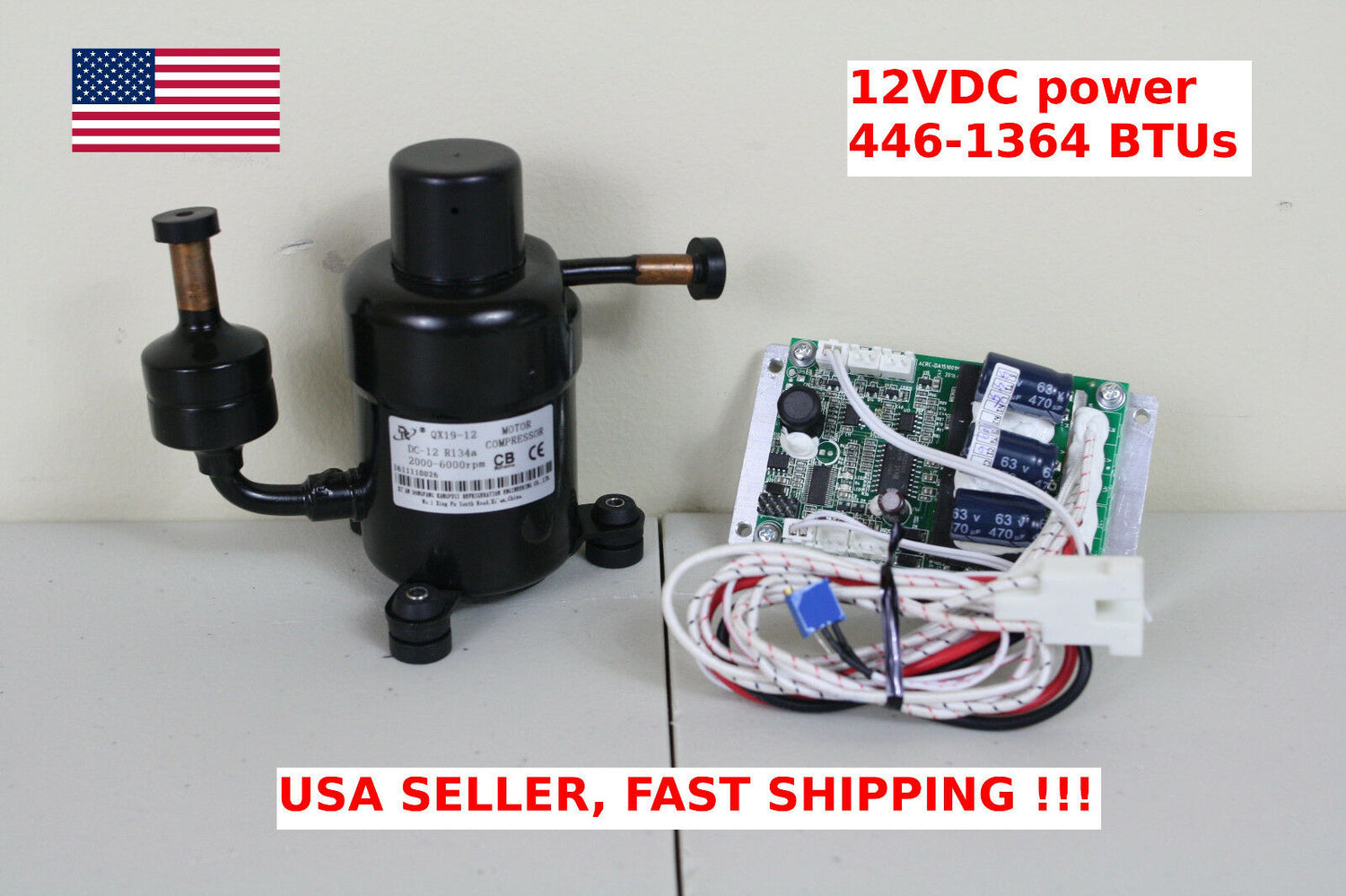

Electronic controller INCLUDED with purchase of compressor (like on picture)
Performance:width="100%"
2000~6000Rpm
Refrigeration capacity. W 130~400_5%
Input power W 115~340+7.5%
Current A 9.5~28+10%
DC 12V
Test temps:
Condensing/evaporating
Temp.=54.42/7.2°C
Ambient Temp.=35°C
Suction Temp.=35°width="100%"C
Liquid Temp.=46.1°C air cooling
==========================
Suitable for
water dispenser, refrigerator, Air conditionning , wine cellar and
other small cooling appliances used for car, ship and camping.

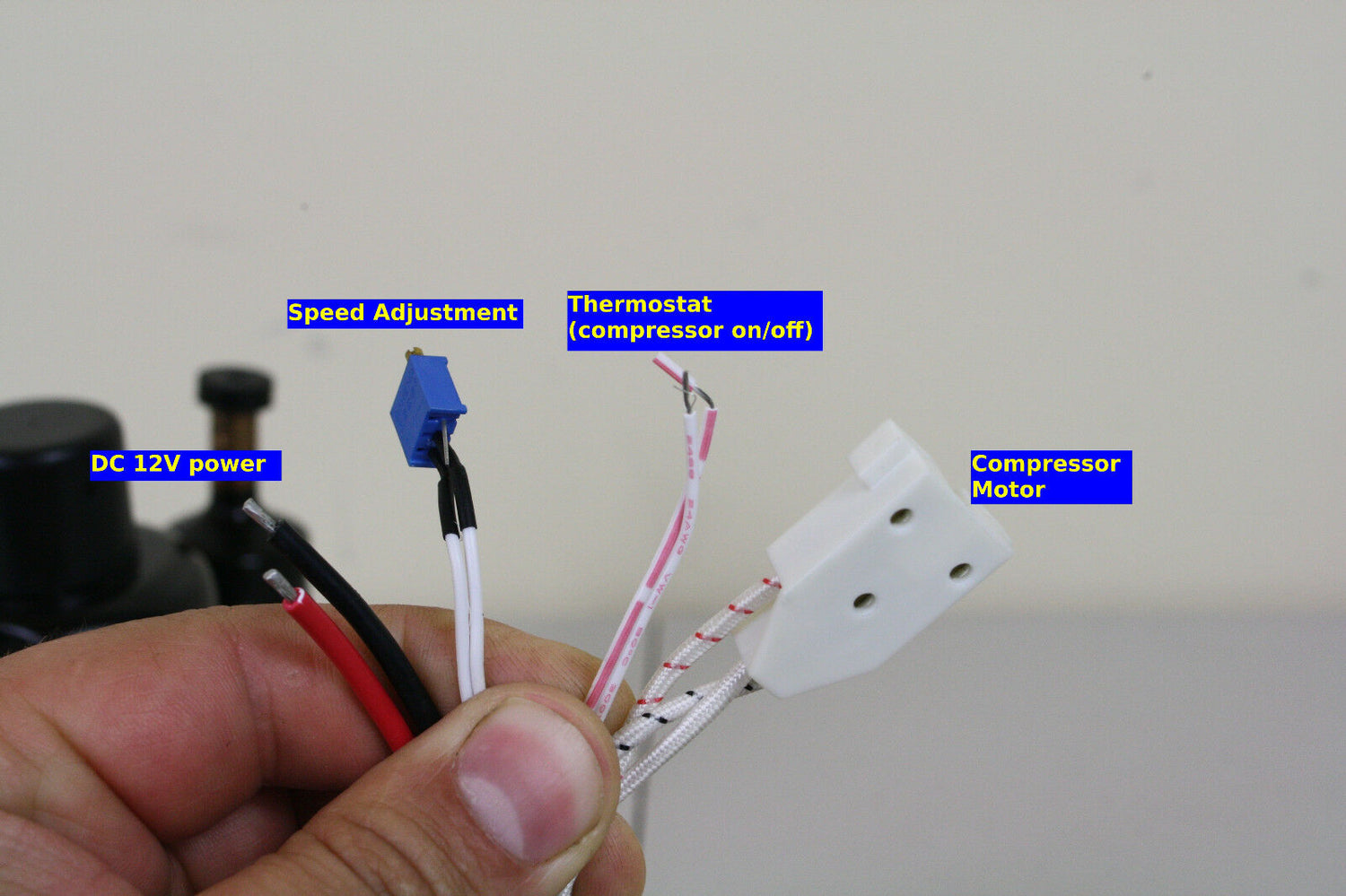

*** Wiring diagram is included as reference, please refer to picture for connector ***
Perfect
for AC to 12 DC fridge conversion on R134A , this gas is inert and
non-flammable so this is first choice for Boats and mobiles applications
Choose right compressor size and gas, Send me a message if you need help with that!
I always carefully pack items with care to avoid damage during shipping.
If item is undeliverable because of buyer's wrong, refused, unreclamed or incomplete address. Buyer pays return shipping cost to Seller (Both Original Shipping AND RETURN SHIPPING).
Buyer is reponsible for his import charges and fees if occurs.
Feel free to contact me for any questions!
