Sikelan QD35Y11G Refrigeration Compressor 1/12HP 229BTU 110-120V R600a LBP

$89.99 USD
$89.99 USD
Sale Sold out

Brand New compressor!

Suitable for replacement on water dispenser, small refrigerator, small freezer, wine cellar and other small cooling appliances.

Choose right compressor size and gas, Send me a message if you need help with that!

Features

  • 1/12 hp
  • Displacement 3.5cc
  • From 31W to 205W Cooling (106 to 699BTUs)  ASHRAE : 67w - 229btu
  • 110-120VAC
  • 50-60Hz
  • R600A
  • Low Back Pressure (LBP)
  • Starting Relay (PTC)
  • Motor Type RSCR

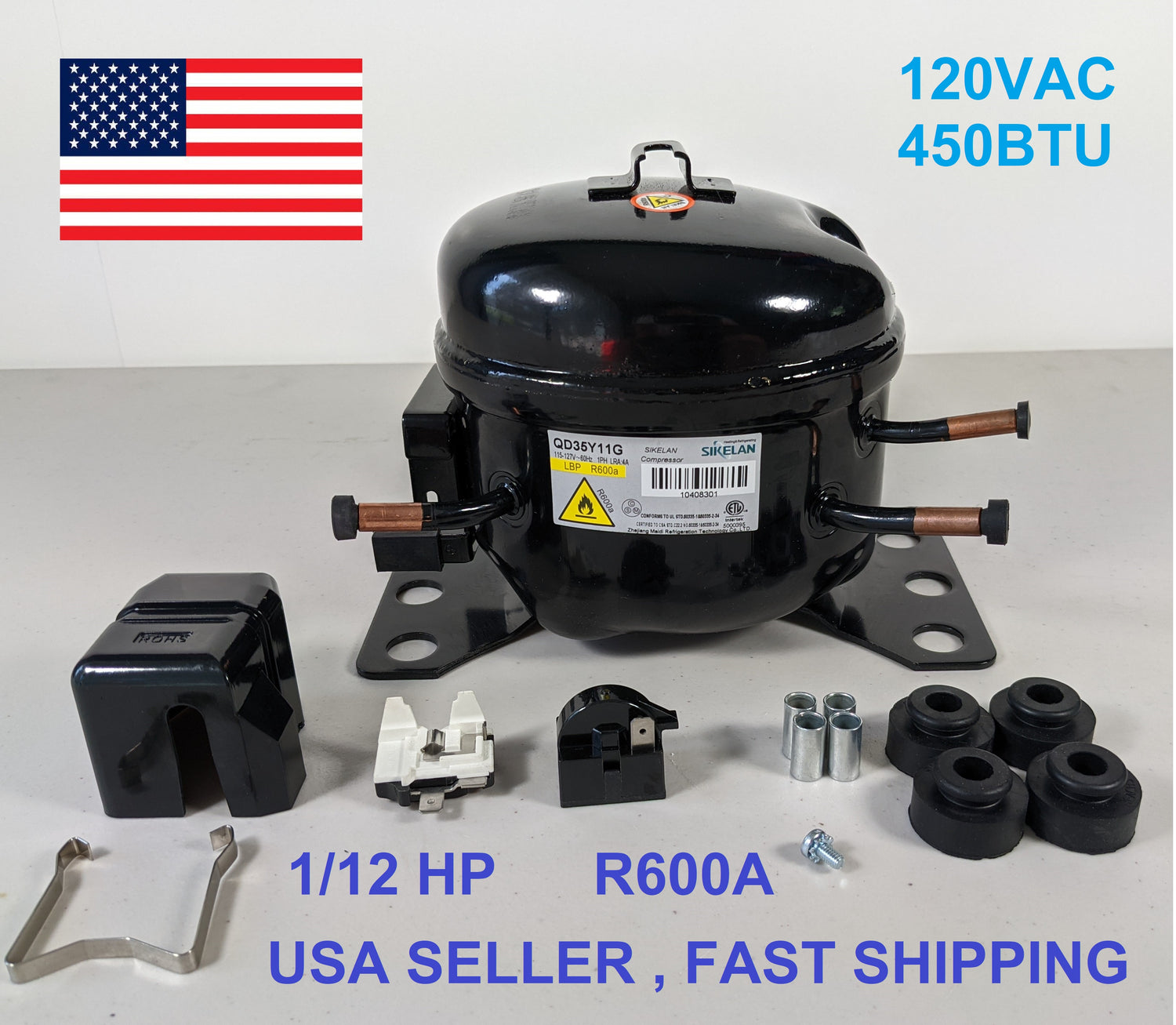

  • Includes electricals, grommets and sleeves.
  • UL certified

Cooling capacity ASHRAE
  • -35C (-31F) - 31w - 106btu
  • -30C(-22F) - 40w - 136btu
  • -25C(-13F) - 52w - 177btu
  • -23.3C(-10F) - 67w - 229btu - input power 56W - current 0.40 Amps - COP 1.20 - EER 4.08
  • -20C(-4F) - 84w - 287btu
  • -15C(5F) - 105w - 358btu
  • -10C(10F) - 131w - 447btu
  • -5C(23F) - 164w - 560btu
  • 0C(32F) - 205w - 699btu
--------------------------------------------------------------------------------------------
