Fridge Freezer Roll Bond Aluminium Evaporator 14x10" (350x250mm) 1/4" tube

READ CAREFULLY ALL LISTING BEFORE BUYING!!!!!

Fridge Freezer Roll Bond Aluminium Evaporator 14x10" (350x250mm) 1/4" tube

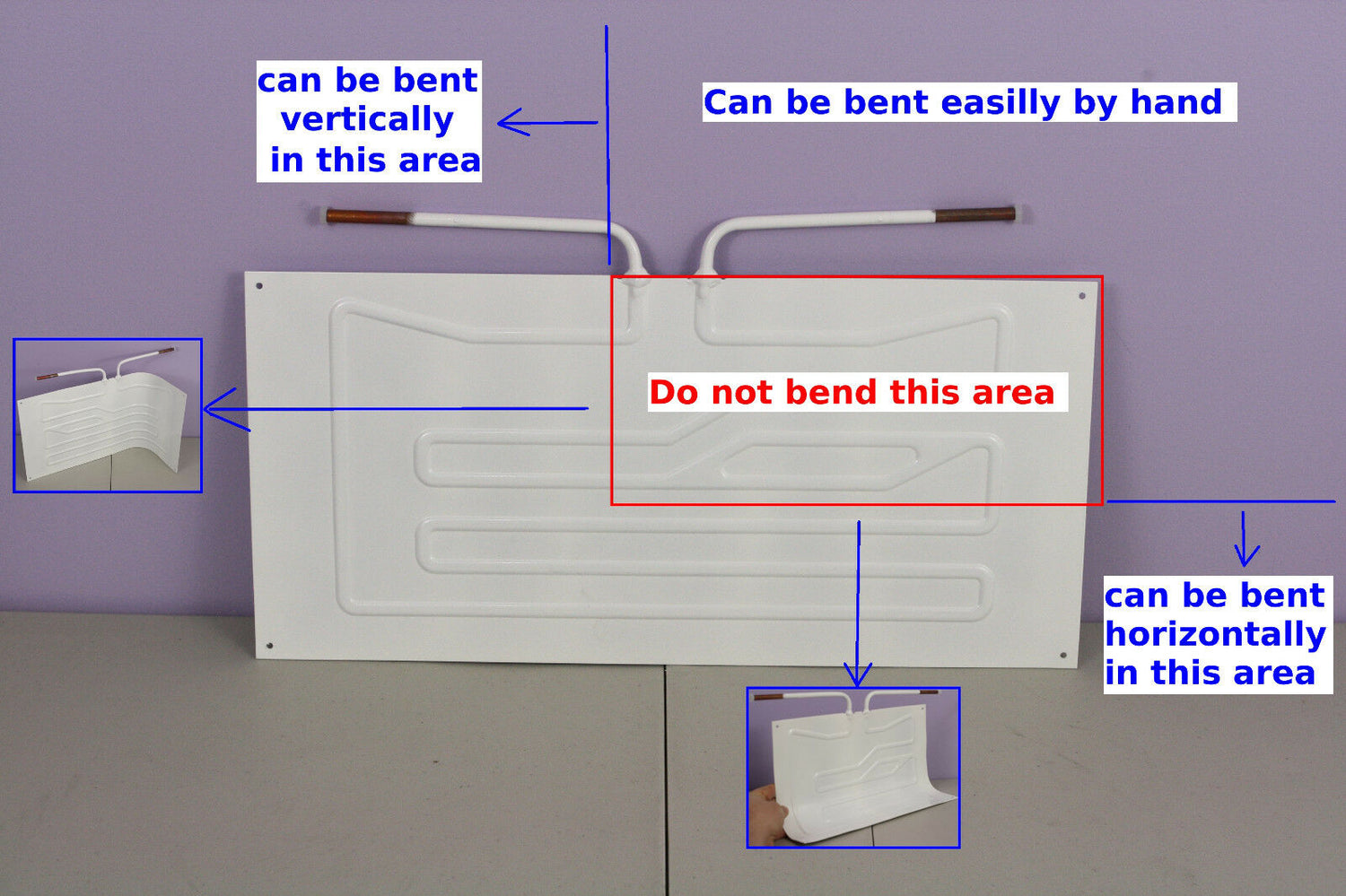

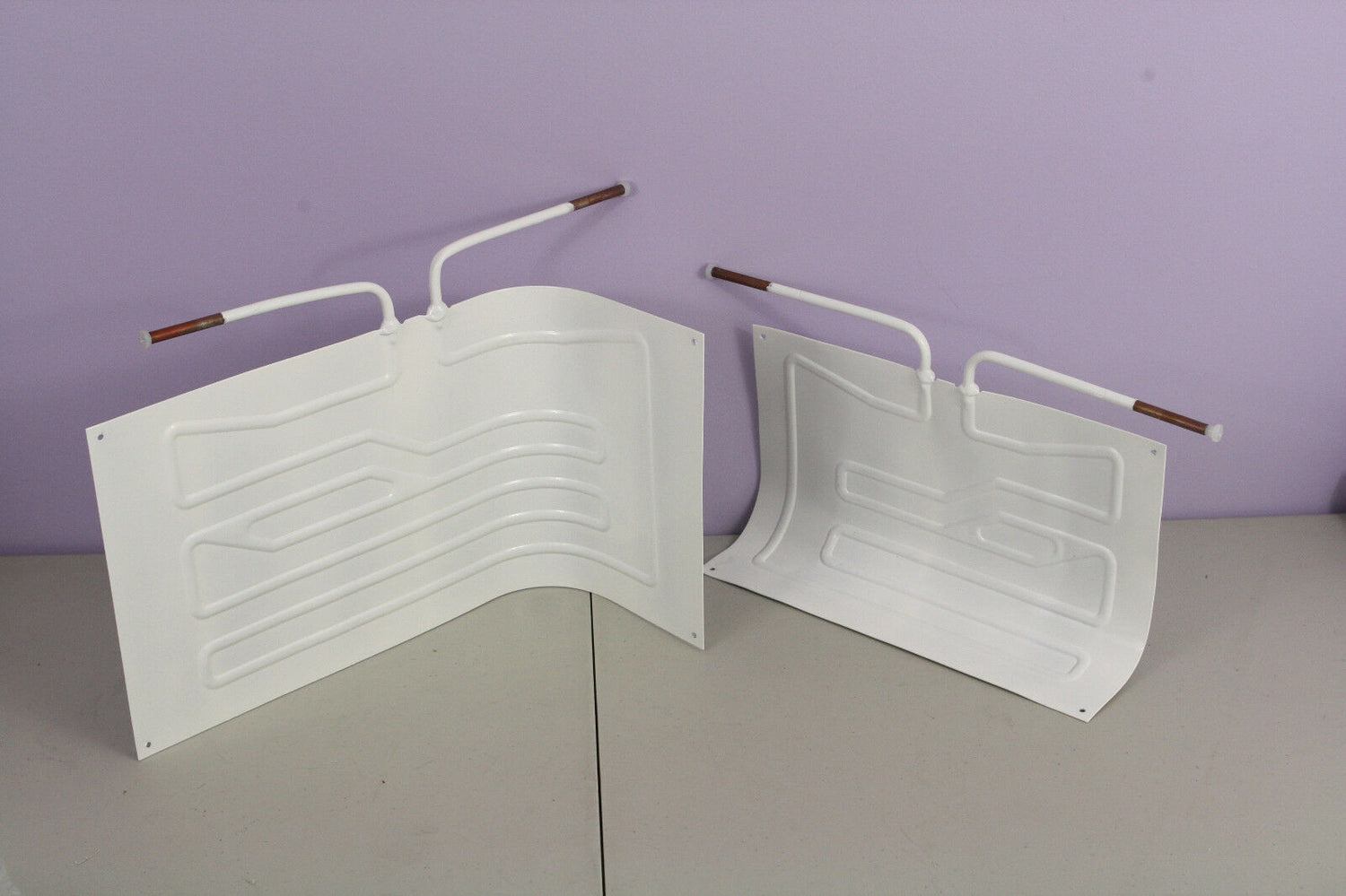

Can be bended easily , But not everywhere see pictures for more details

Capacity with QDZH35G (or BD35):

Fridge 38F (3C):

2.75 cuft Single evaporator (80L)

5.50 cuft Dual evaporator* (160L)

Freezer 0F(-18C):

0.87 cuft Single evaporator (25L)

1.75 cuft Dual evaporator* (50L)

NOTES:

-Based on 2 inch foam insulation for a fridge, 4inch for a freezer .Chest Style (top) opening , Reduce box volume by 50% for Vertical Style Door opening (like an upright fridge)

-Based on 95F (35C) ambient temperature, Reduce box volume by 20% for tropical conditions 110F (43C)

-Evaporator need to be distanced of the wall by 1/2 inch to allow air circulation and better cooling.

*Dual evaporator means : 2 evaporator in serie in the same chamber.

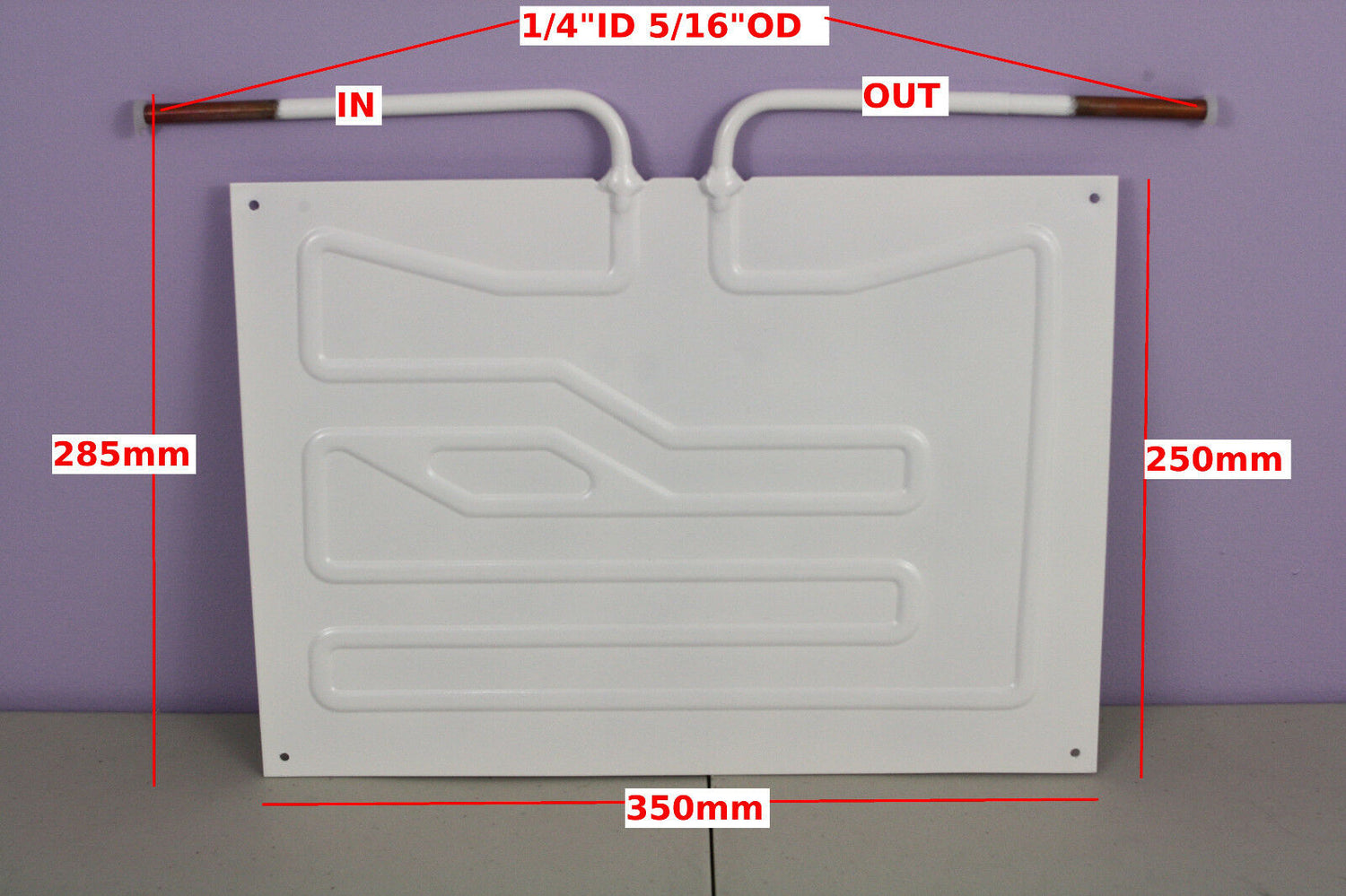

Overall dimension:

Plate: 13 3/4" (350mm) large x 9 7/8" (250mm) high

Total Height: 11 1/4" (285mm) including tubes

Thickness: 1.35mm and 4mm at channel

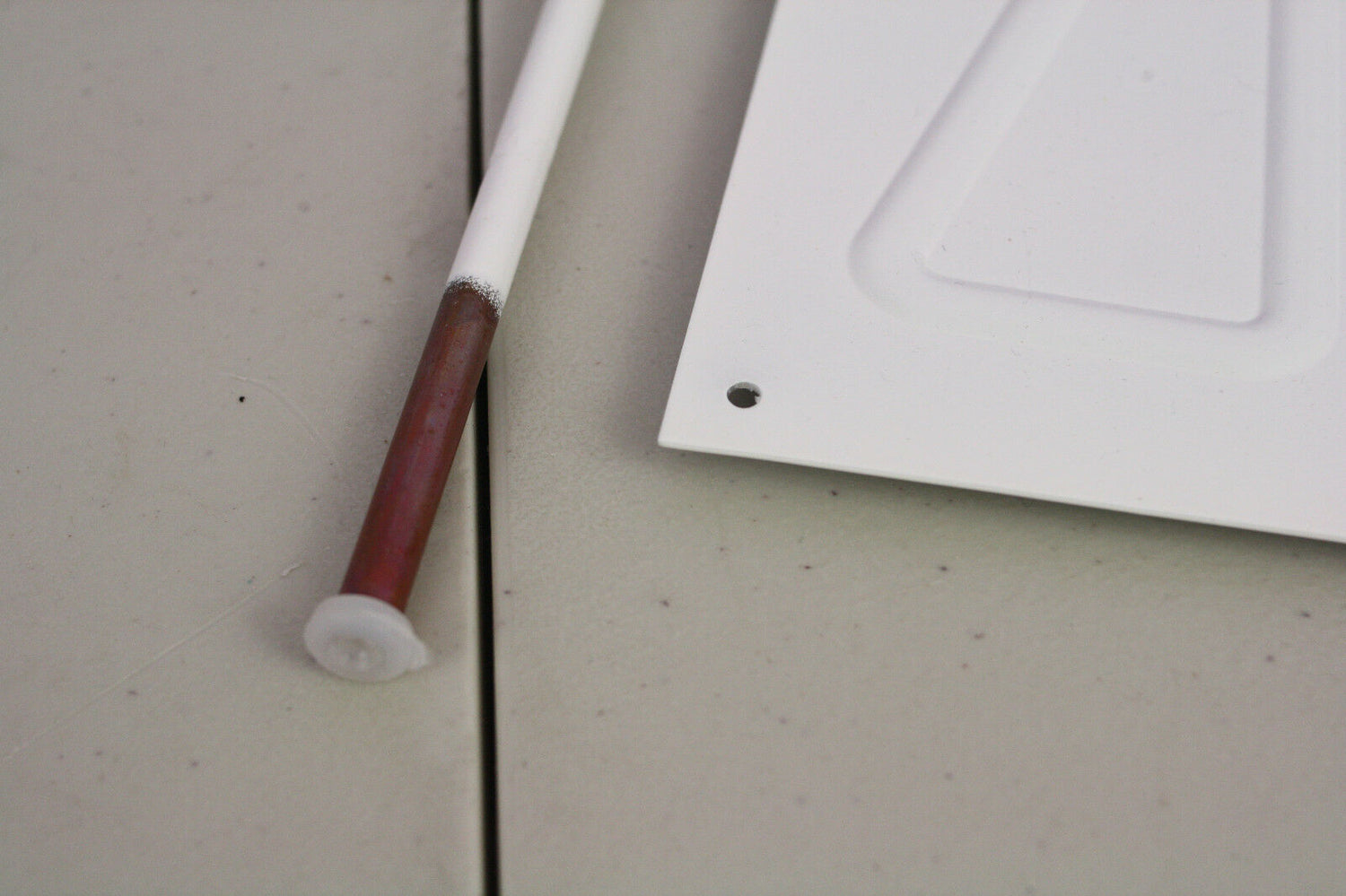

Tube diameter : 1/4" ID (6mm) 5/16"OD (8mm)

Mounting holes (screws not included) : #8 (0.155" or 4mm Diameter)

 Suitable for small refrigerator, small freezer used for car, boat ,camping, solar and off-grid.
