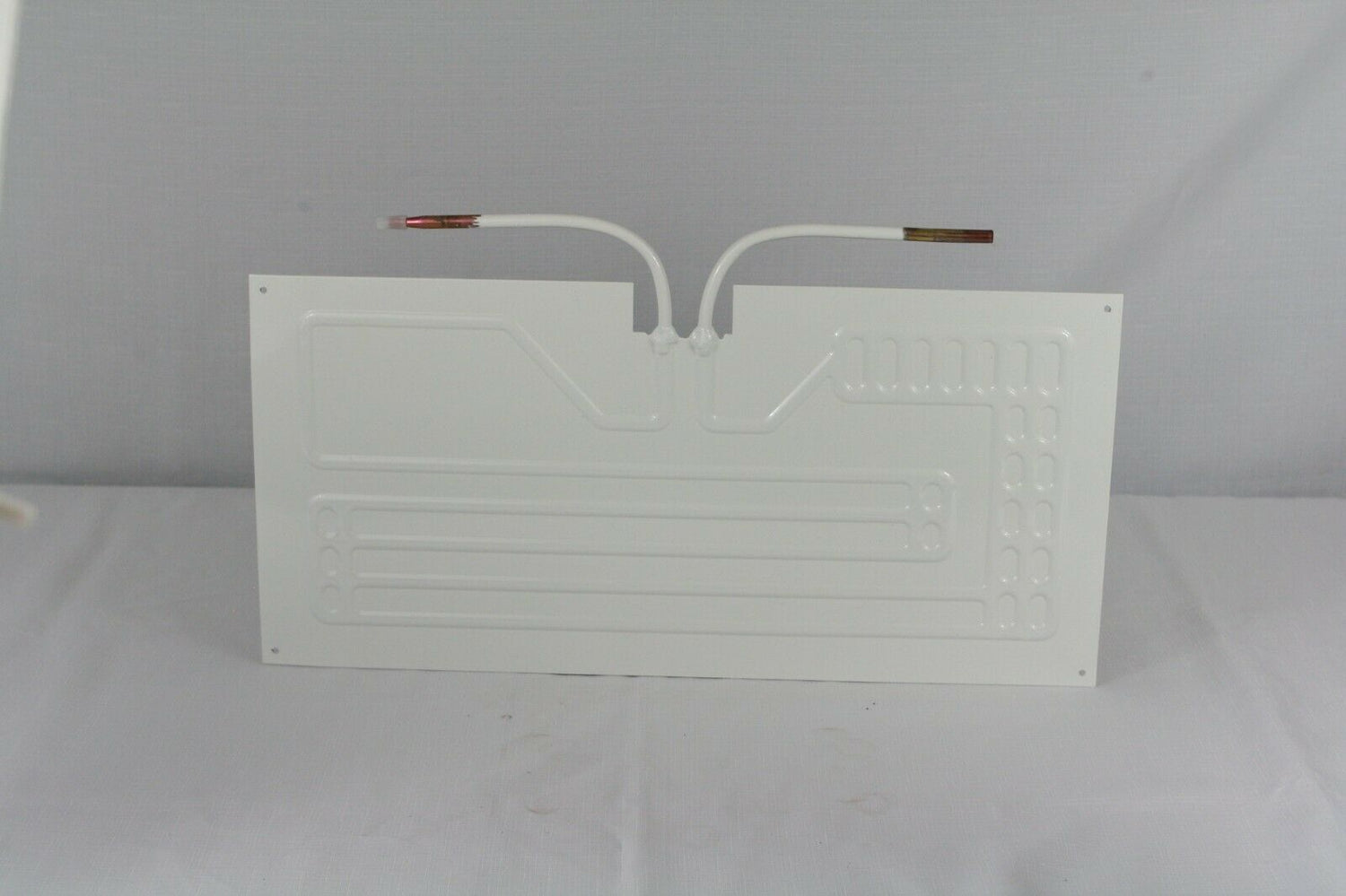

Fridge Freezer Roll Bond Aluminium Evaporator 20x10" (525x250mm) 1/4" tube
Couldn't load pickup availability
READ CAREFULLY ALL LISTING BEFORE BUYING!!!!!

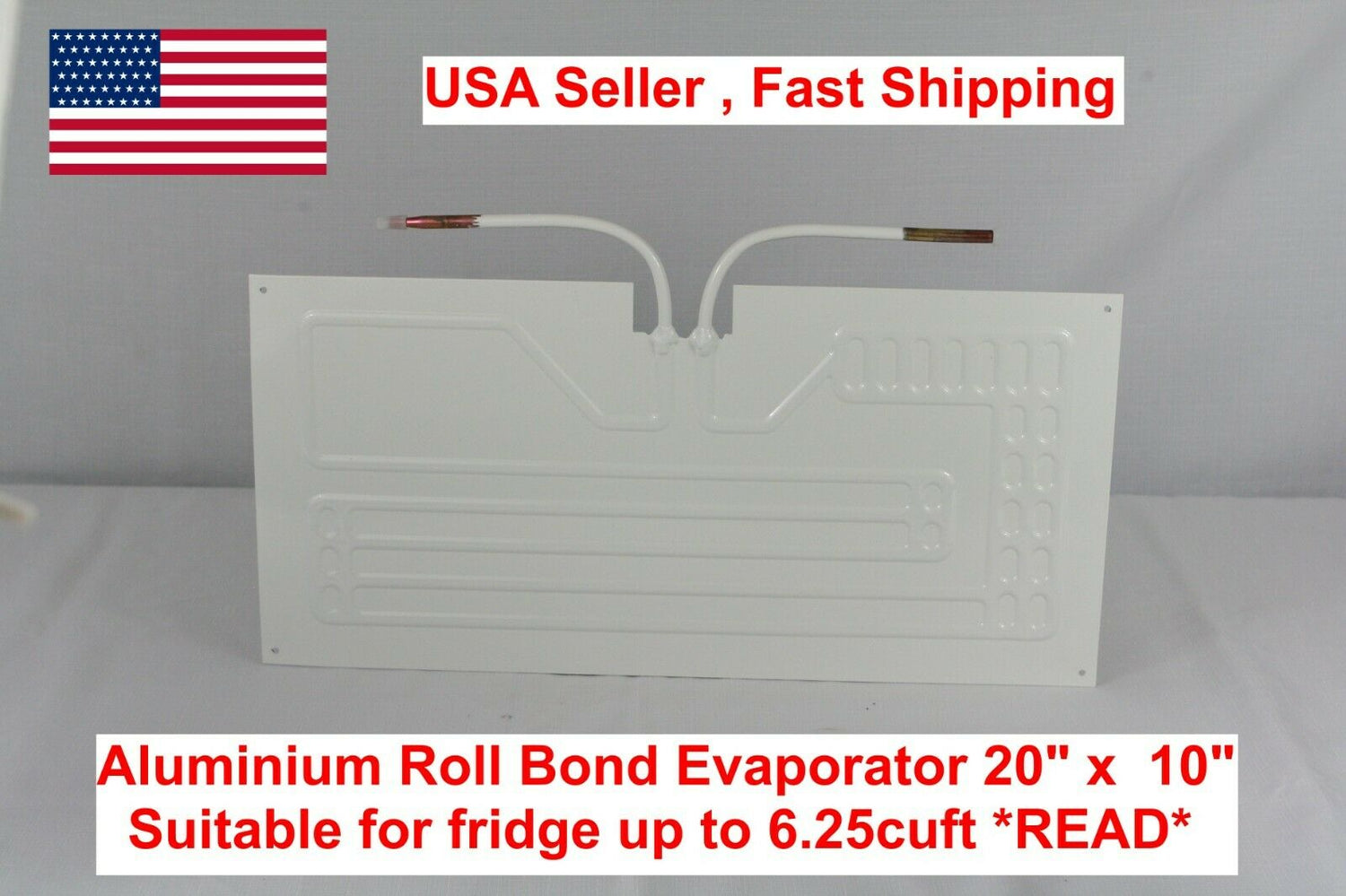

Fridge Freezer Roll Bond Aluminium Evaporator 20x10" (525x250mm) 1/4" tube

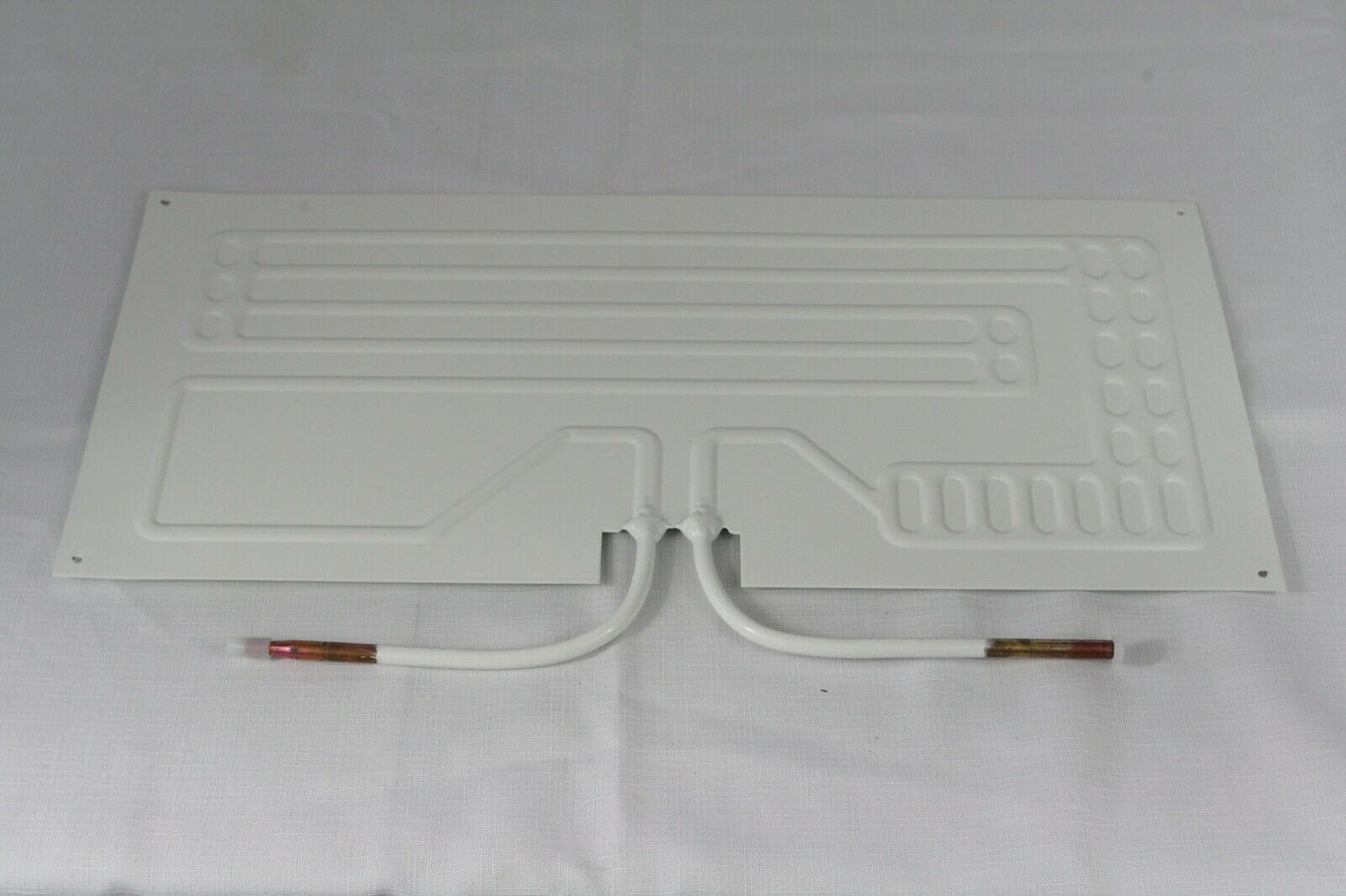

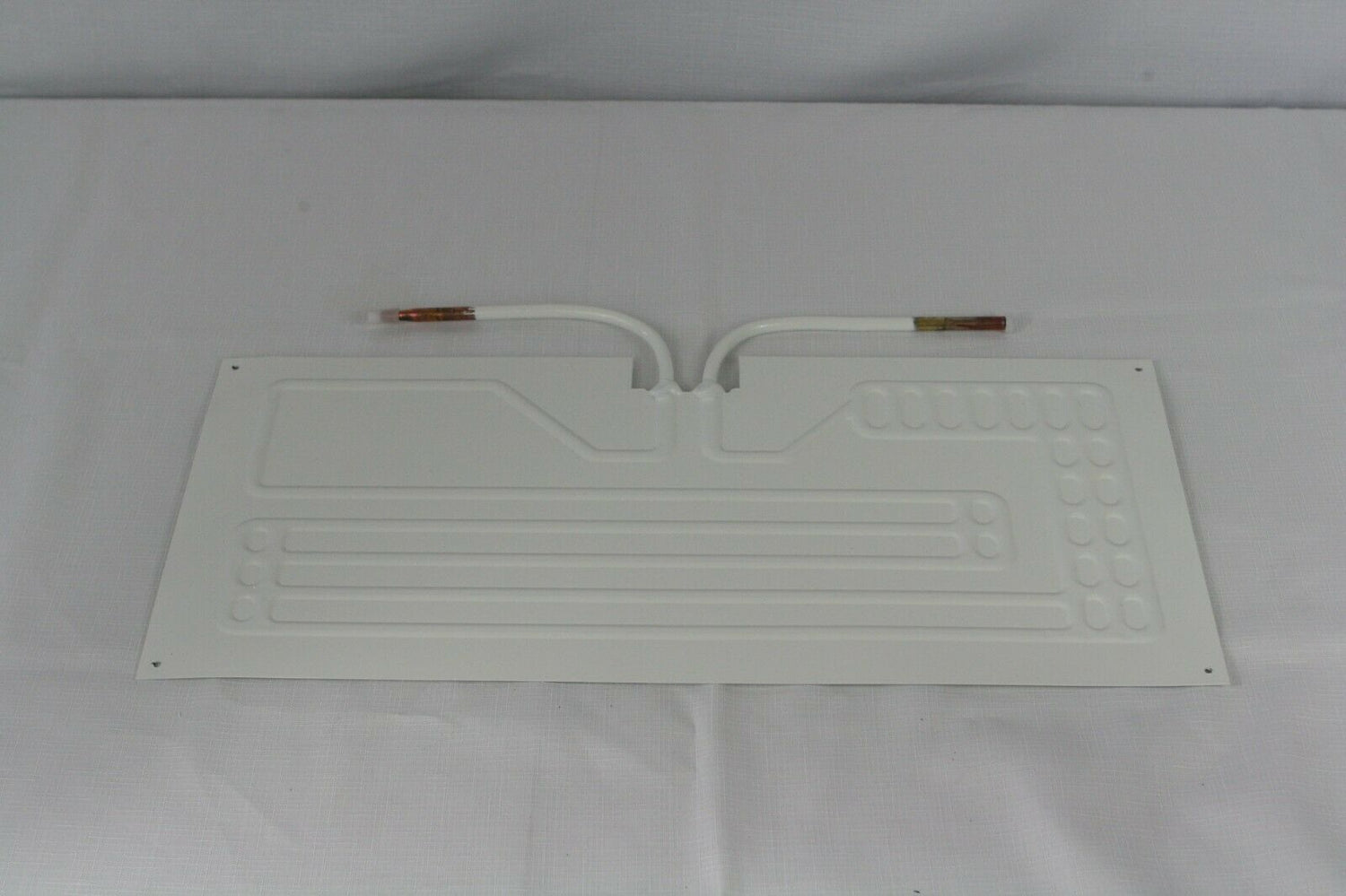

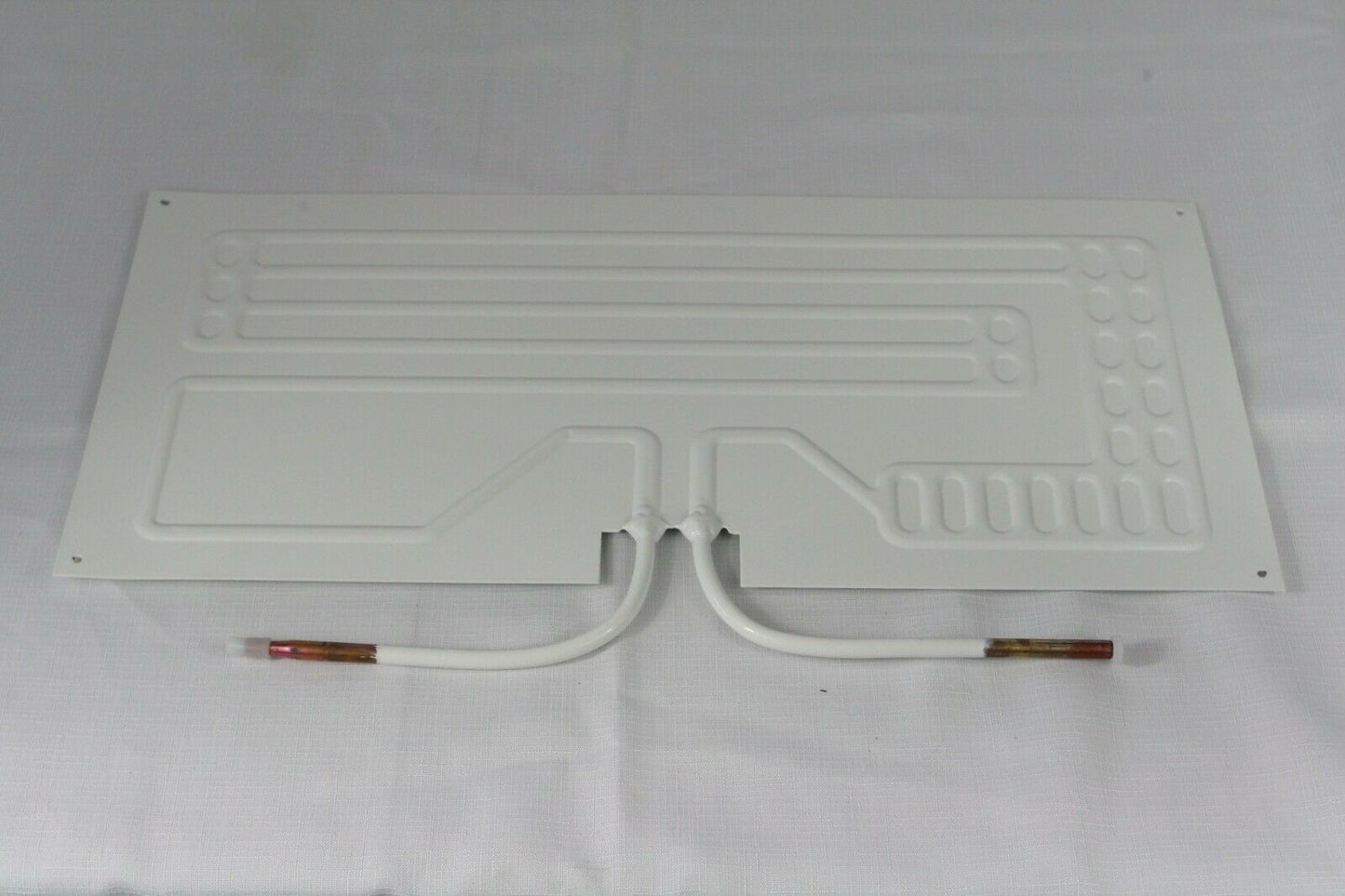

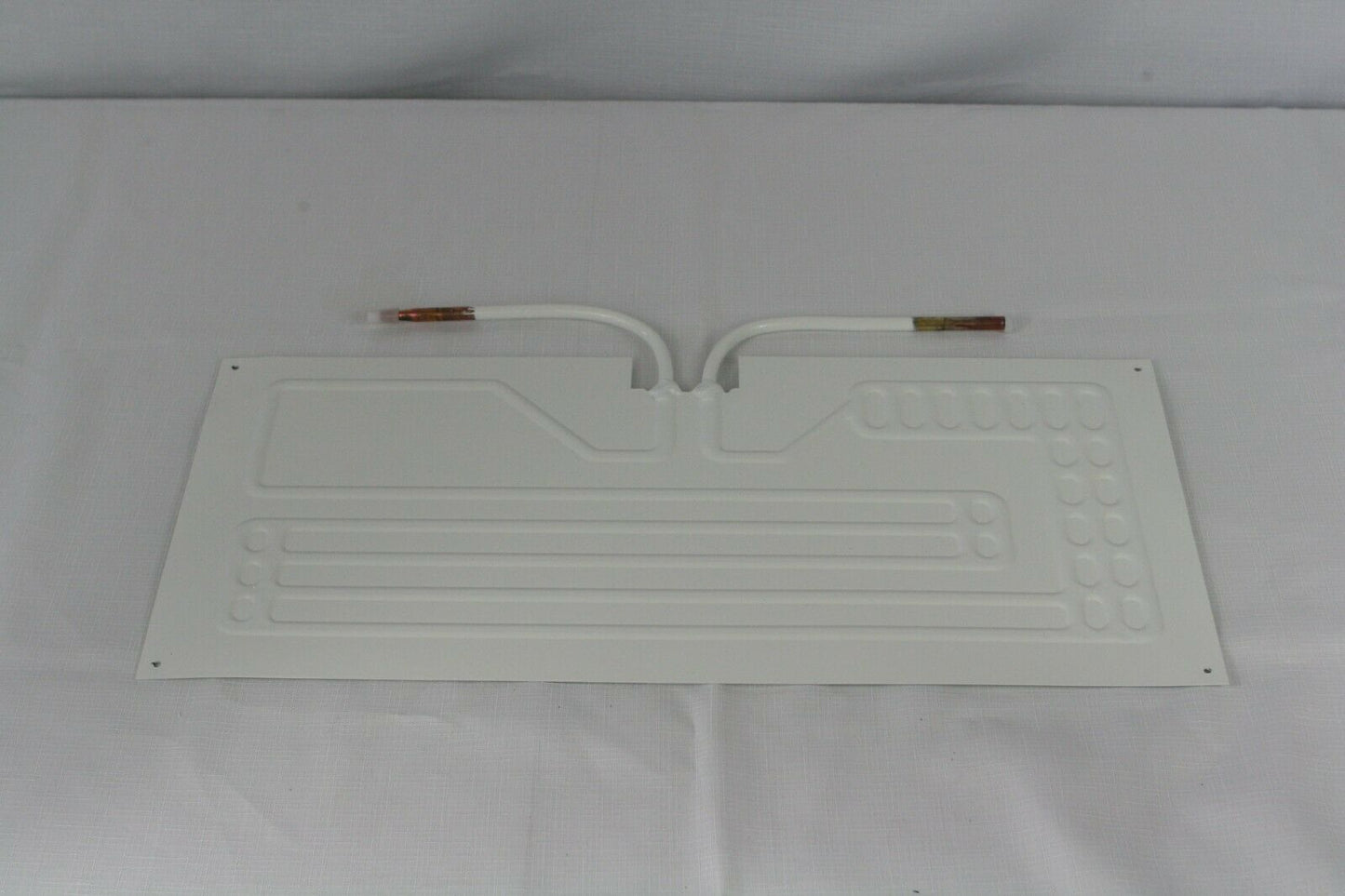

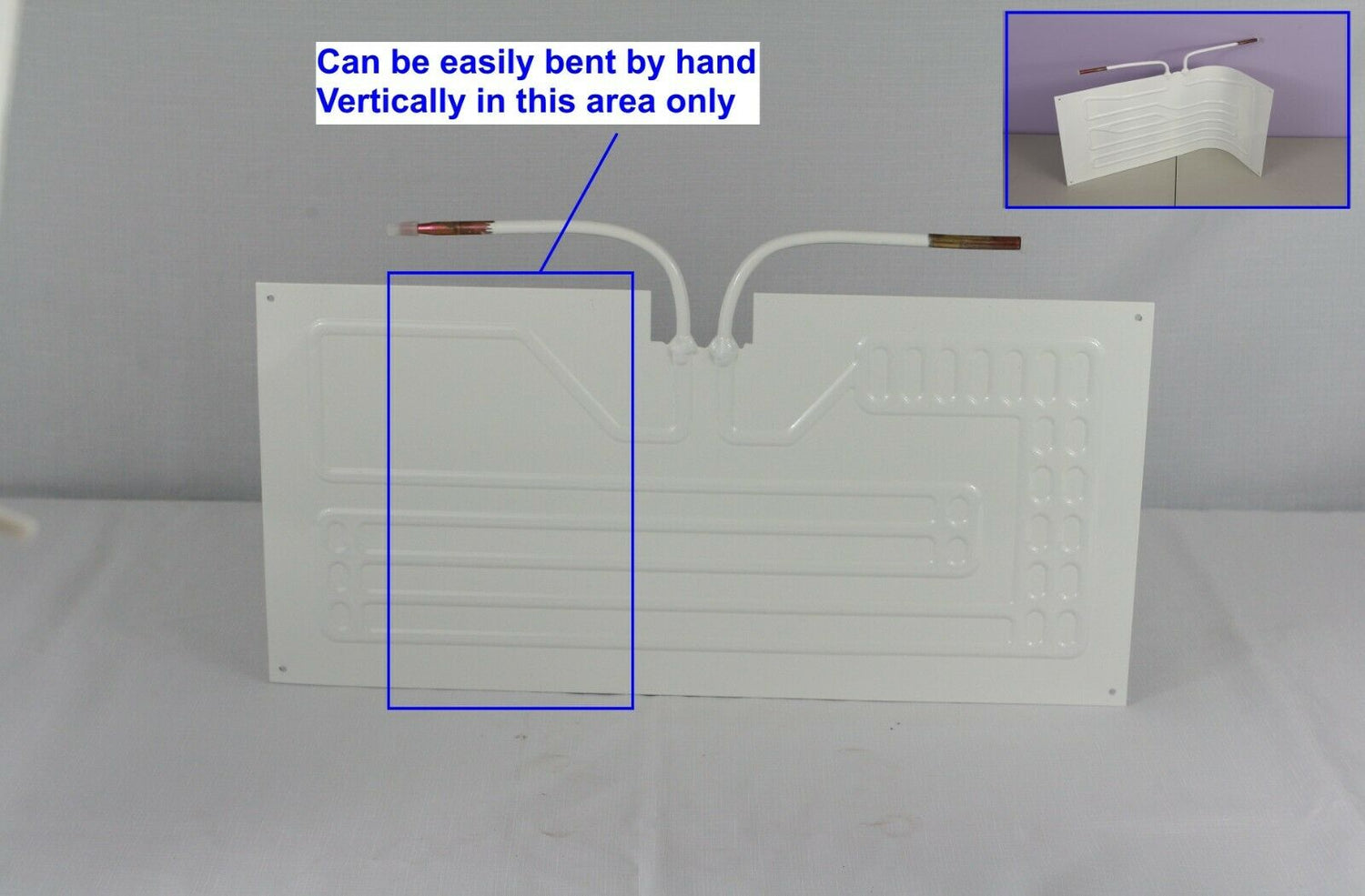

Can be bended easily , But not everywhere see pictures for more details
Need to be mounted horizontal, tubes needs to be at top.
Capacity with QDZH35G (or BD35):
Fridge 38F (3C):
6.25 cuft (180L)
Freezer 42F(-6C):
2.1 cuft (60L)
*****Based on 2 inch foam insulation for a fridge, 4inch for a freezer , Chest Style (top) opening , Reduce box volume by 50% for Vertical Style Door opening (like an upright fridge)****
*****Based on 95F (35C) ambient temperature, Reduce box volume by 20% for tropical conditions 110F (43C)****

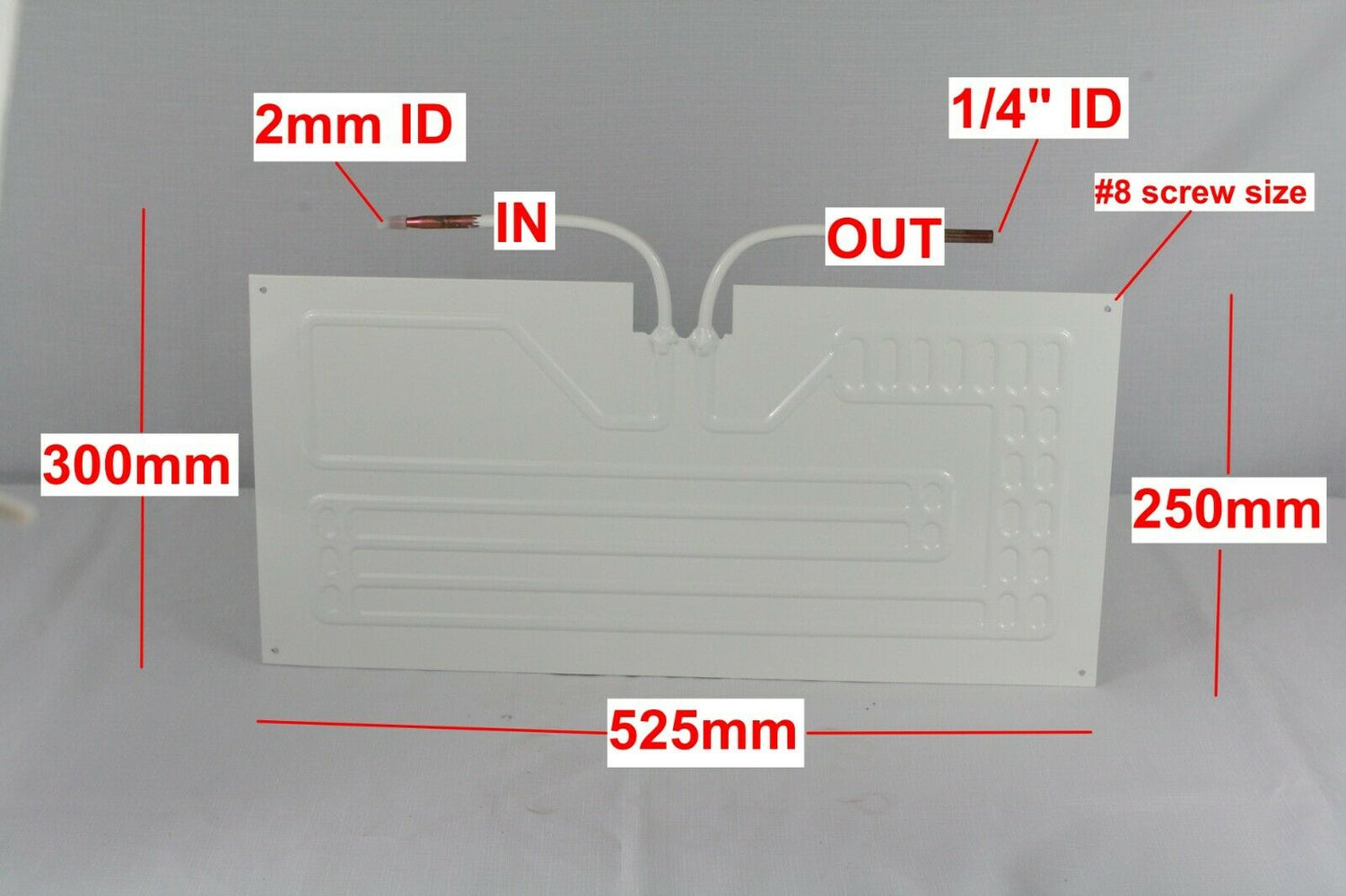

Overall dimension
Plate: 525mm x 250mm (300mm heigth including tubes)
Thickness: 1.35mm and 4mm at channel

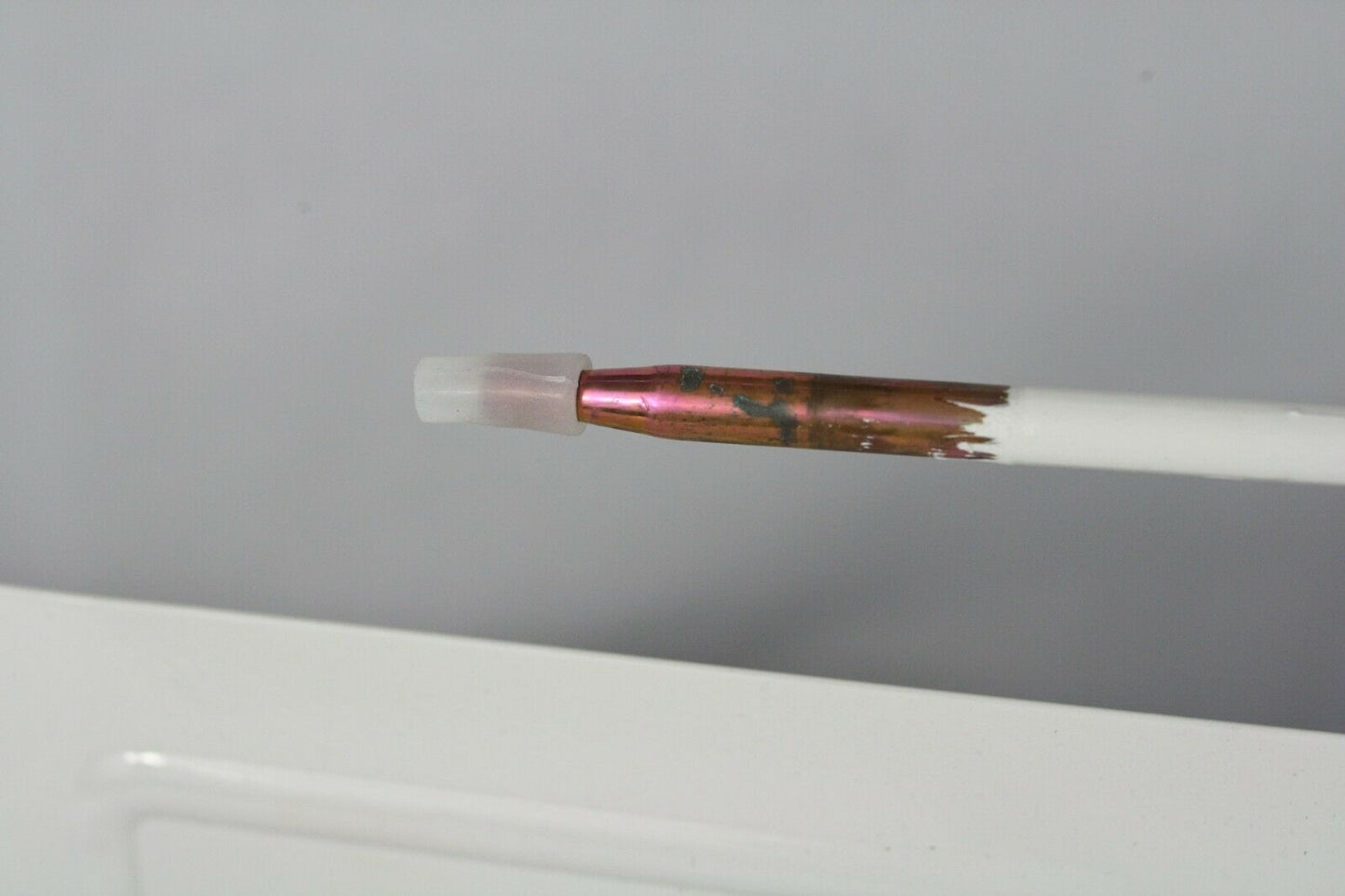

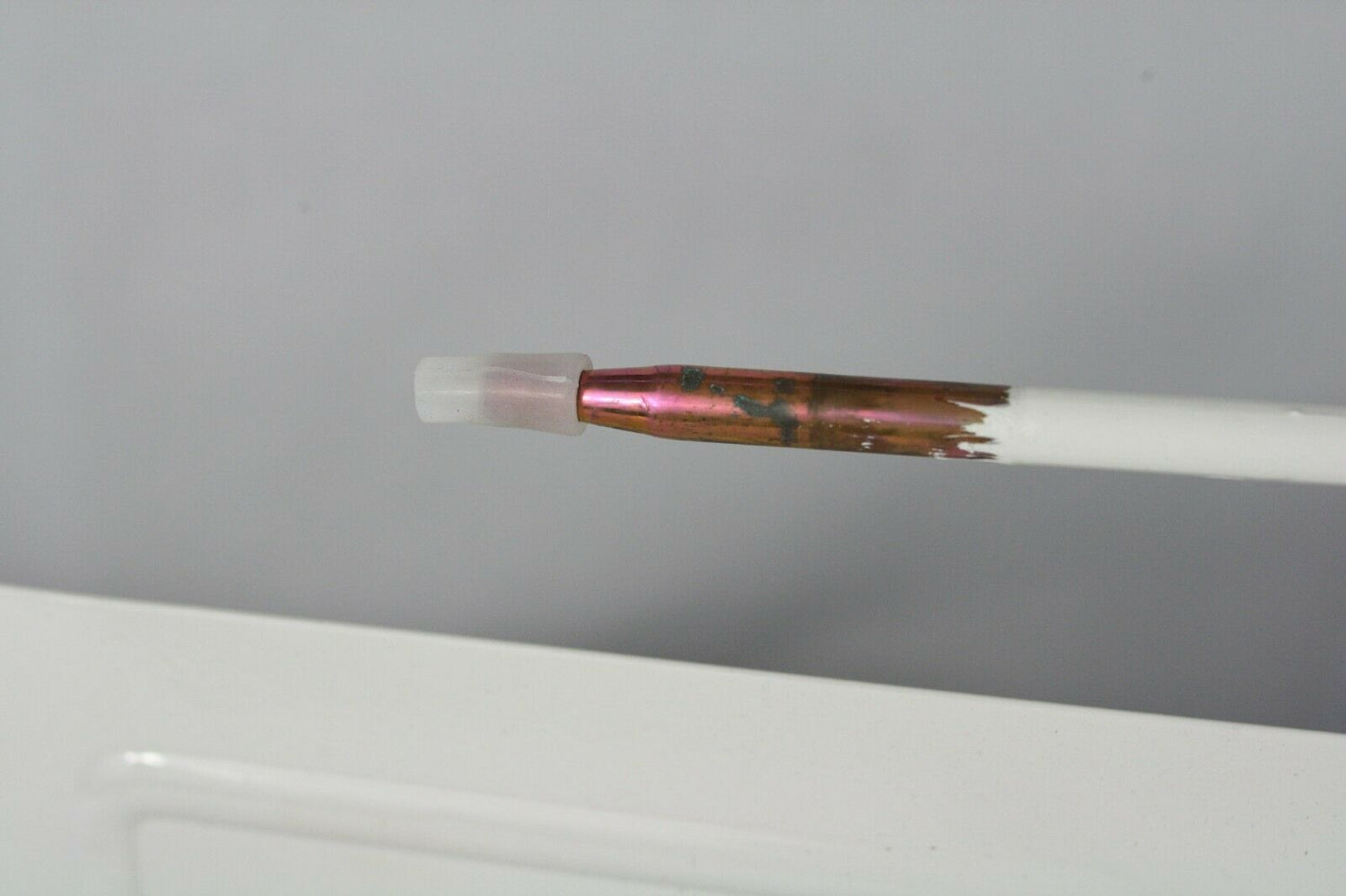

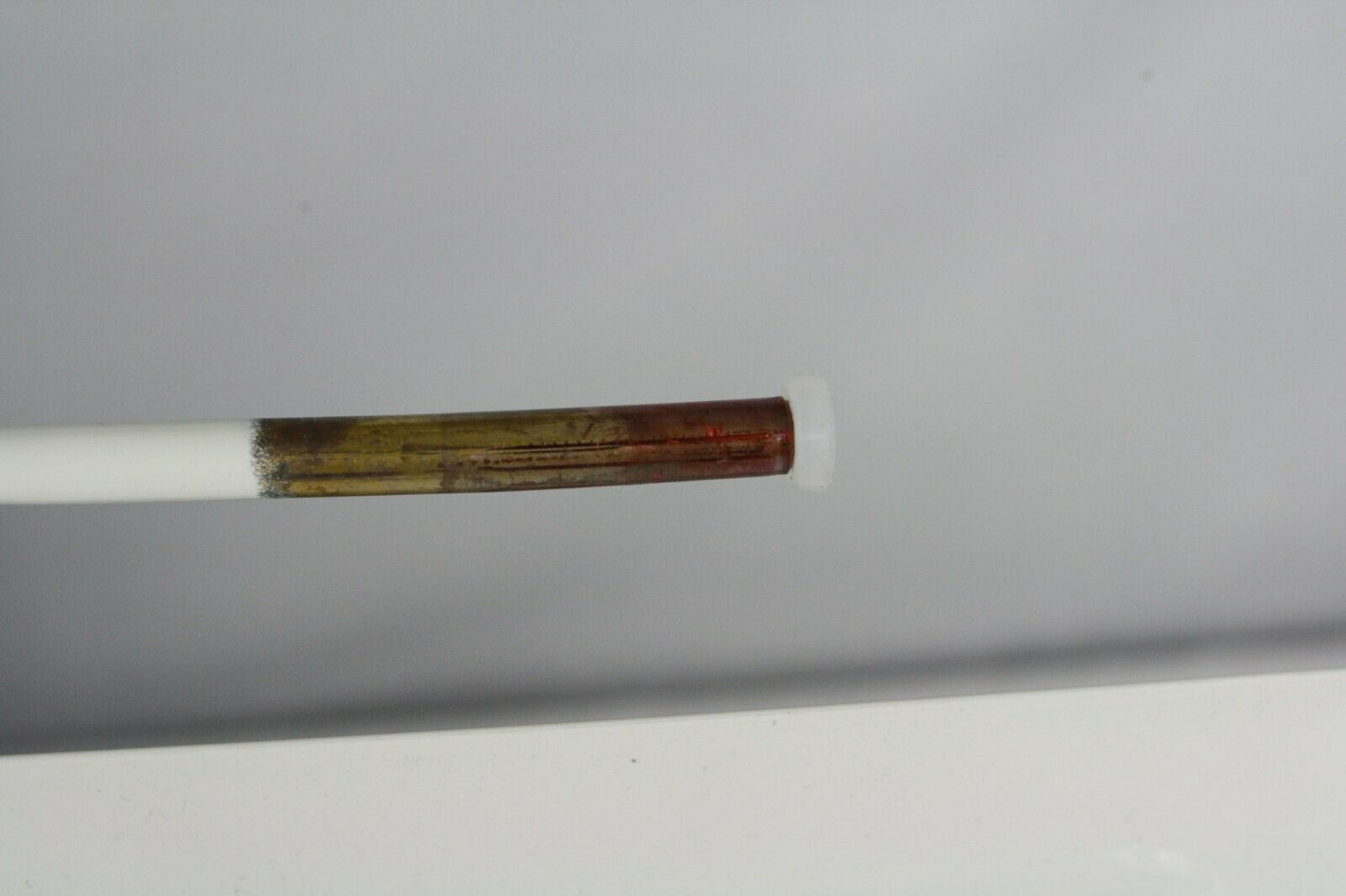

In Tube diameter : 2mm ID for capilary,
Out Tube diameter : 1/4" ID (6mm) 5/16"OD (8mm)
Mounting holes (screws not included) : #8 (0.155" or 4mm Diameter)
Suitable for small refrigerator, small freezer used for car, boat ,camping, solar and off-grid.
---------------------------------------------------------------------------------------------
