Q10 keyboard prototyping board assembled
Regular price
$13.99 USD
Regular price
Sale price
$13.99 USD
Unit price
per
Couldn't load pickup availability
FREE SHIPPING LETTER MAIL USA !!!!
INTERNATIONAL SHIPPING AVAILABLE FOR A SMALL FEE

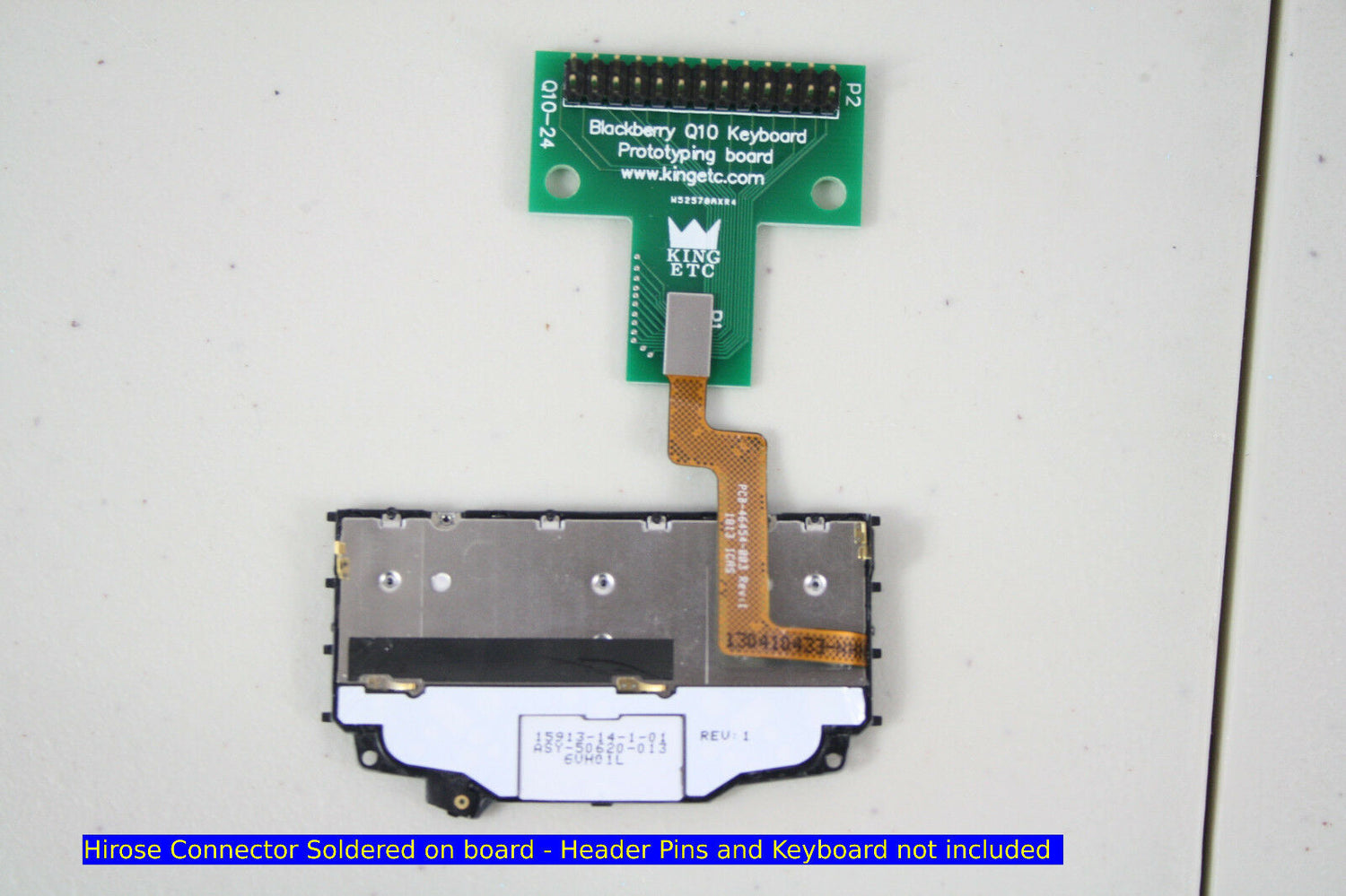

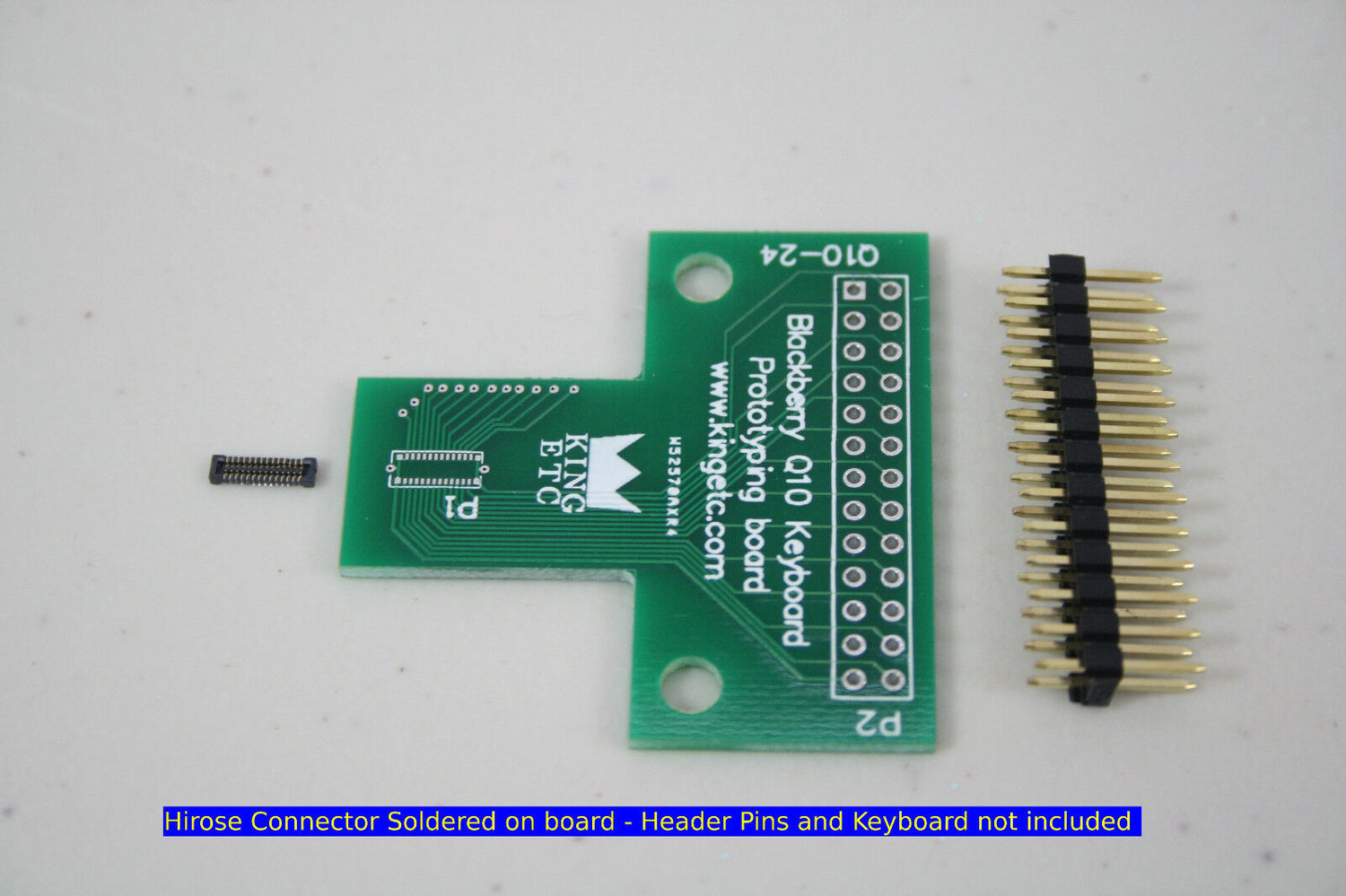

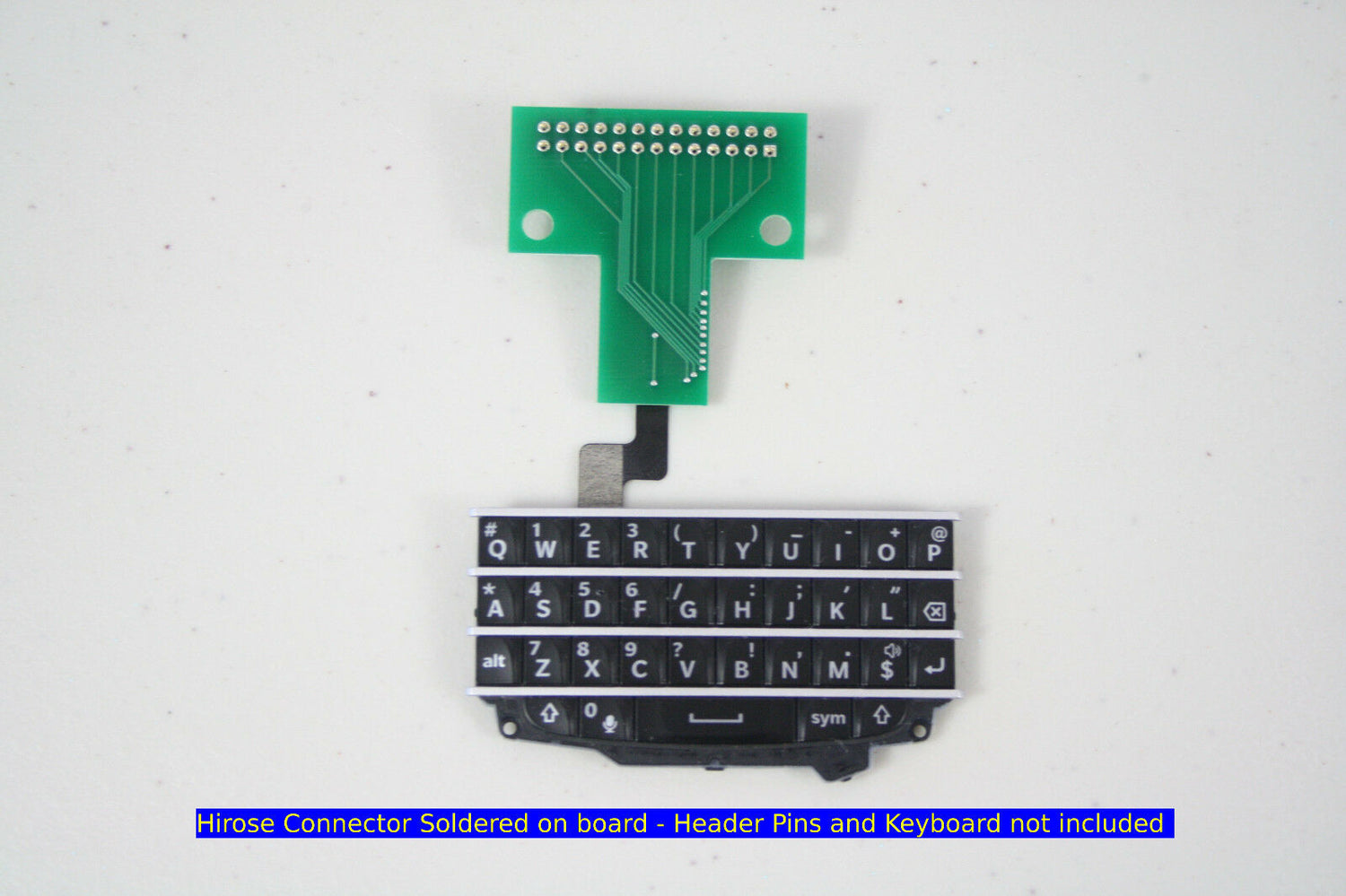

***Header Pins and Keyboard not included***
You will receive board + hirose connector soldered on it only
ADD miniature and widely available cheap keyboard to your devices/projects
ADD portability to your Arduino, Raspberry pi, ODROID, UDOO, C.H.I.P., Beaglebone, etc...

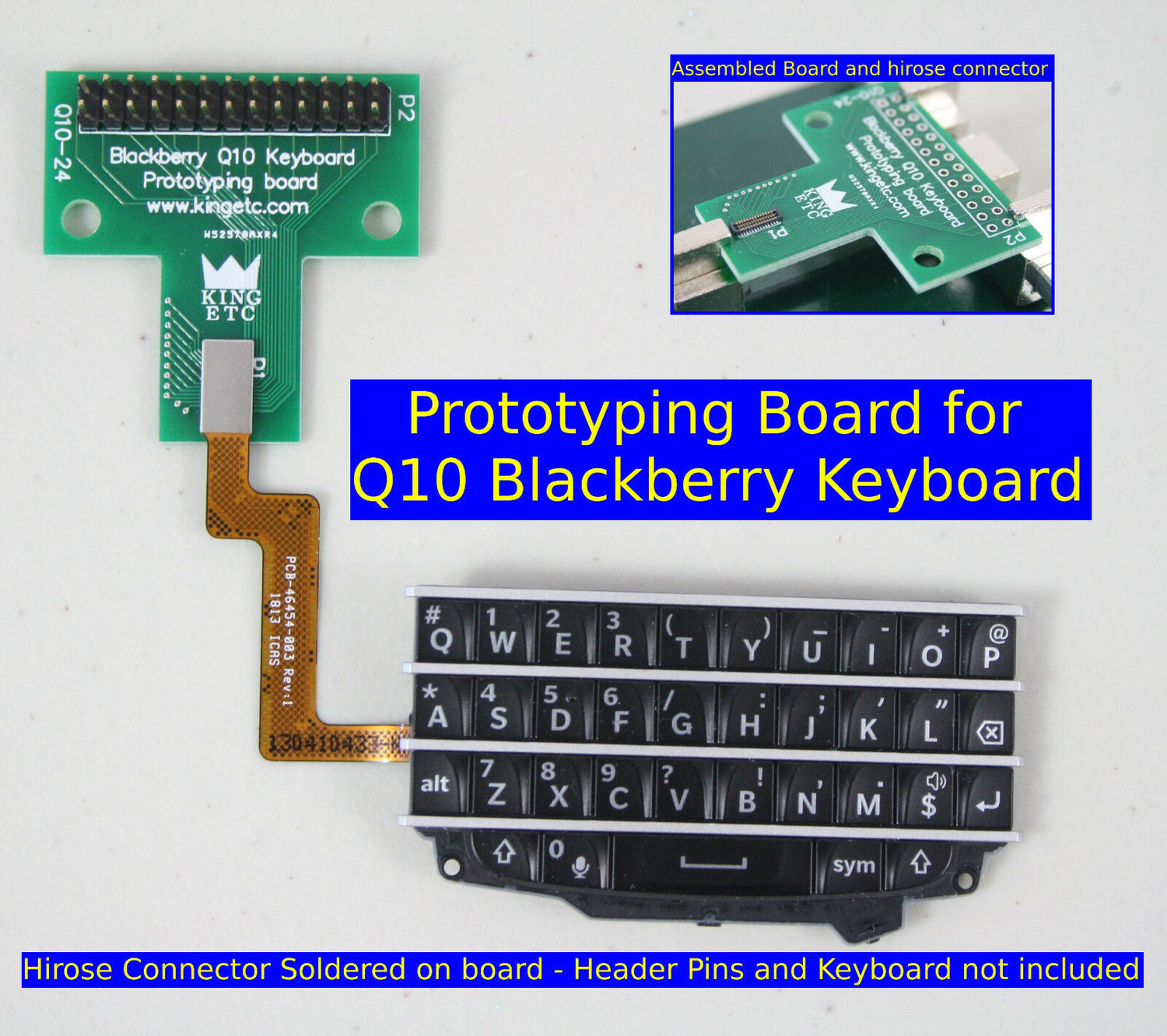

This is a PCB to connect a blackberry Q10 keyboard to a dual row header pins or weld directly wire to it
This allows experimentation with Q10 Blackberry keyboard and Hirose BM14B(0.8)-24DS-0.4V(53) Connector.
Hirose BM14B(0.8)-24DS-0.4V(53) Connector is soldered and board ready to use

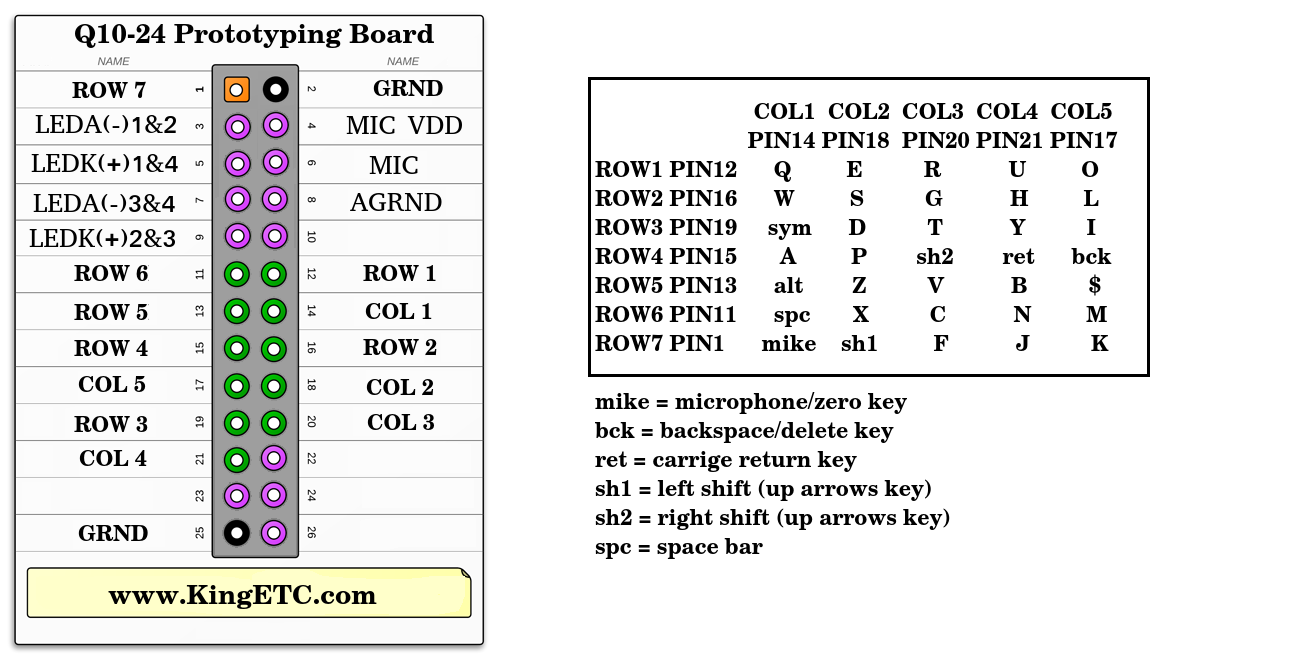

Keyboard "row" mappings
ROW1 = PIN12 Q, E, R, U, O
ROW2 = PIN16 W, S, G, H, L
ROW3 = PIN19 T, Y, I, D, sym
ROW4 = PIN15 P, A, bck, ret, sh2
ROW5 = PIN13 alt, X, V, $, B
ROW6 = PIN11 spc, Z, C, M, N
ROW7 = PIN1 mike, sh1, F, K, JBacklight
Keyboard "column" mappings
COL1 = PIN14 Q, W, A, sym, alt, mike, space
COL2 = PIN18 S, D, X, sh1, E, P, ZBacklight
COL4 = PIN21 Y, U, ret, H, B, J, N
COL5 = PIN17 I, O, K, L, bck, M, $
COL1 COL2 COL3 COL4 COL5
PIN14 PIN18 PIN20 PIN21 PIN17
ROW1 PIN12 Q E R U O
ROW2 PIN16 W S G H L
ROW3 PIN19 sym D T Y I
ROW4 PIN15 A P sh2 ret bck
ROW5 PIN13 alt Z V B $
ROW6 PIN11 spc X C N M
ROW7 PIN1 mike sh1 F J K
mike = microphone/zero key
bck = backspace/delete key
ret = carrige return key
sh1 = left shift (up arrows key)
sh2 = right shift (up arrows key)
spc = space bar
ADD miniature and widely available cheap keyboard to your devices/projects
ADD portability to your Arduino, Raspberry pi, ODROID, UDOO, C.H.I.P., Beaglebone, etc...
This is a PCB to connect a blackberry Q10 keyboard to a dual row header pins or weld directly wire to it
This allows experimentation with Q10 Blackberry keyboard and Hirose BM14B(0.8)-24DS-0.4V(53) Connector.
Hirose BM14B(0.8)-24DS-0.4V(53) Connector is soldered and board ready to use
=================================================
BlackBerry Q10 Keyboard Prototyping board
Backlight
PIN 3 = LEDA(-) 1&2
PIN 5 = LEDK(+) 1&4
PIN 7 = LEDA(-) 3&4
PIN 9 = LEDK(+) 2&3
Integrated Microphone
PIN 4 = MIC VDD
PIN 6 = MIC
PIN 8 = AGRND
ROW1 = PIN12 Q, E, R, U, O
ROW2 = PIN16 W, S, G, H, L
ROW3 = PIN19 T, Y, I, D, sym
ROW4 = PIN15 P, A, bck, ret, sh2
ROW5 = PIN13 alt, X, V, $, B
ROW6 = PIN11 spc, Z, C, M, N
ROW7 = PIN1 mike, sh1, F, K, JBacklight
PIN 3 = LEDA(-) 1&2
PIN 5 = LEDK(+) 1&4
PIN 7 = LEDA(-) 3&4
PIN 9 = LEDK(+) 2&3
Integrated Microphone
PIN 4 = MIC VDD
PIN 6 = MIC
PIN 8 = AGRND
Keyboard "column" mappings
COL1 = PIN14 Q, W, A, sym, alt, mike, space
COL2 = PIN18 S, D, X, sh1, E, P, ZBacklight
Backlight
PIN 3 = LEDA(-) 1&2
PIN 5 = LEDK(+) 1&4
PIN 7 = LEDA(-) 3&4
PIN 9 = LEDK(+) 2&3
Integrated Microphone
PIN 4 = MIC VDD
PIN 6 = MIC
PIN 8 = AGRND
PIN 3 = LEDA(-) 1&2
PIN 5 = LEDK(+) 1&4
PIN 7 = LEDA(-) 3&4
PIN 9 = LEDK(+) 2&3
Integrated Microphone
PIN 4 = MIC VDD
PIN 6 = MIC
PIN 8 = AGRND
COL3 = PIN20 R, T, F, G, V, C, sh2COL4 = PIN21 Y, U, ret, H, B, J, N
COL5 = PIN17 I, O, K, L, bck, M, $
COL1 COL2 COL3 COL4 COL5
PIN14 PIN18 PIN20 PIN21 PIN17
ROW1 PIN12 Q E R U O
ROW2 PIN16 W S G H L
ROW3 PIN19 sym D T Y I
ROW4 PIN15 A P sh2 ret bck
ROW5 PIN13 alt Z V B $
ROW6 PIN11 spc X C N M
ROW7 PIN1 mike sh1 F J K
mike = microphone/zero key
bck = backspace/delete key
ret = carrige return key
sh1 = left shift (up arrows key)
sh2 = right shift (up arrows key)
spc = space bar
