AC R134A LBP Compressors

Brand New Sikelan compressor , High quality!
Suitable for replacement on water dispenser, refrigerator, freezer, wine cellar and other small cooling appliances.

NRTL Certification : All models UL Recognized (exept for ADW110T6=ETL and ADW142T6=No certification)

Need to be properly installed by a professional, Prefilled with oil.

Choose right compressor size and gas, Send me a message if you need help with that!

Links to manuals :

QD30H11G QD35H11G ADW43T6 ADW57T6 ADW66T6 ADW77T6 ADW86T6 ADW110T6  ADW142T6

Model HP Displa
cement
(cm3)		 Cooling Capacity ASHRAE
-35C(-31F) -30C(-22F) -25C(-13F) Test conditions -23.3C(-10F) -20C(-4F) -15C(5F) -10C(10F) -5C(23F) 0C(-32F)
W Btu/h W Btu/h W Btu/h Capacity
(W)		 Capacity
(Btu/h)		 Input
Power
(W)		 Current
(A)		 COP EER W Btu/h W Btu/h W Btu/h W Btu/h W Btu/h
QD25H11G 1/12 2.5 30 102 38 130 50 171 65 222 59 0.90 1.10 3.76 81 276 102 348 127 433 159 543 198 676

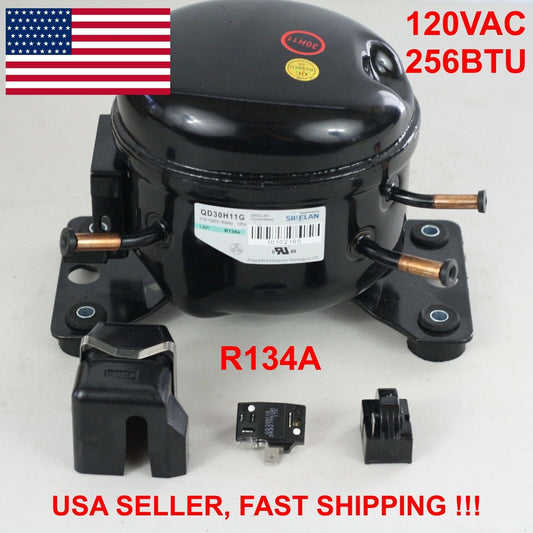

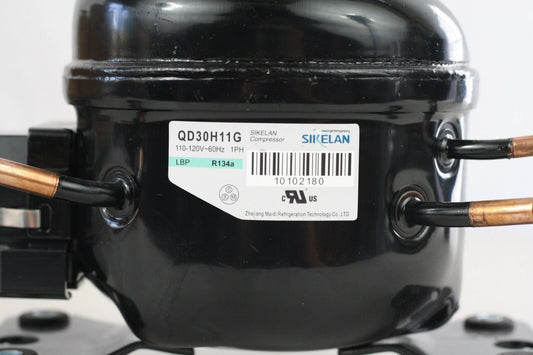

QD30H11G 1/10 3.0 34 116 44 150 58 198 75 256 68 1.10 1.10 3.76 94 321 117 399 147 502 183 624 229 781

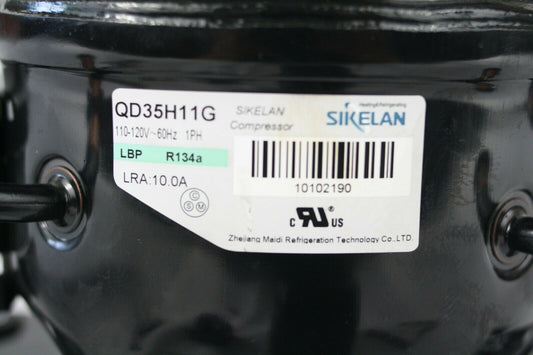

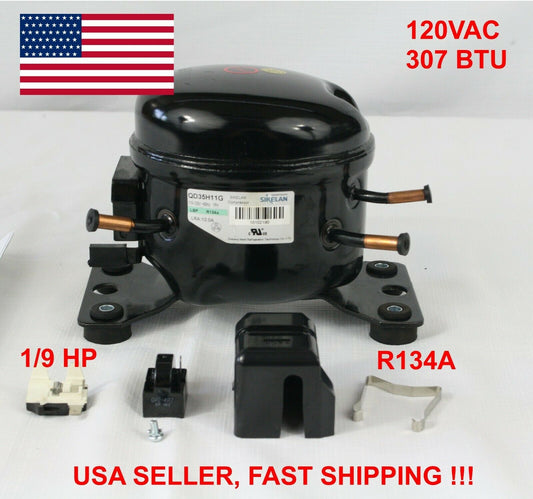

QD35H11G 1/9 3.5 41 140 53 181 69 235 90 307 69 1.30 1.30 4.45 113 386 141 481 176 601 220 751 275 938
ADW43T6 1/6 4.3 59 201 77 263 100 341 130 444 100 1.40 1.30 4.44 163 556 203 693 254 867 317 1082 397 1355
ADW57T6 1/4 5.7 73 249 95 324 123 420 160 546 123 1.60 1.30 4.44 200 682 250 853 313 1068 391 1334 488 1665
ADW66T6 1/4+ 6.6 89 304 115 392 150 512 195 665 145 2.20 1.35 4.59 244 833 305 1041 381 1300 476 1624 595 2030
ADW77T6 1/3- 7.7 100 341 130 444 169 577 220 751 165 2.40 1.35 4.55 275 938 344 1174 430 1467 537 1832 671 2289
ADW86T6 1/3 8.6 109 372 142 485 185 631 240 819 178 2.60 1.35 4.60 300 1024 375 1280 469 1600 586 1999 732 2498
ADW110T6 3/8 11.0 141 481 183 624 239 815 310 1058 230 3.80 1.35 4.60 388 1324 484 1651 605 2064 757 2583 946 3228
ADW142T6 1/2 14.2 183 624 238 812 309 1054 402 1372 298 4.60 1.35 4.60 503 1716 628 2143 785 2678 981 3347 1227 4187
Filter and sort

Filter and sort

9 products

Availability
Clear
Price

The highest price is

$
$
Clear
Brand
Clear
Clear all
Clear all

9 products

Installation Video... COMING SOON!
